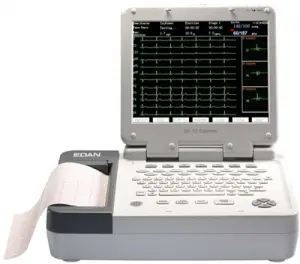

Edan SE-12 Express Stress EKG Machine

Edan SE-12 Express Stress EKG Machine

Vendor: Edan
$3995.00 $5399.00 Buy Now
Please, enter quantity for at least one product
Quantity unavailable. Try selecting a smaller quantity.

The SE-12 Express offers you both resting and stress solutions with high performance and reliable analysis. One touch operation with barcode scanner and wireless transmission enables to streamline your workflow.

This item is NEW and comes with a 3 year manufacturers warranty.

The twelve-channel ECG SE-12 Express is a special system of smart ECG series, which support both resting ECG and Exercise ECG. Alphanumeric keyboard and one touch operation design makes it the perfect choice for you.

User-friendly Design

  • 12.1” high resolution color touch screen with grid display
  • Alphanumeric keyboard

Streamlined Worklow

  • One-touch operation with age and gender shortcuts
  • Support barcode scanner to simplify workflow

Accurate Clinical Performances

  • Weak signal detection with the most advanced 24 bits A/D converter technology
  • Anti-noise technology with comprehensive filters and the high

CMRR over 115dB

  • 120s real-time ECG waveforms freezing and review to assist your diagnosis
  • Automatic measurements and interpretation tested by CSE/AHA/MIT database
  • Extend printing once arrhythmia is detected to further your rhythm analysis
  • Integrated advanced ECG analysis: Vector ECG

Flexible Printing Solutions

  • Built-in high resolution thermal recorder to print on normal thermal paper and A4 size fax paper
  • External USB printer support

Data Management

  • 200 ECGs internal memory which can be enlarged by USB flash disk
  • Smart ECG Viewer software for data management on PC (option)

Extensive Communications

  • DATA transmitting to PC via LAN/WIFI
  • Standard ECG formats: PDF, SCP, FDA-XML and DICOM data export
  • Bi-directional data communication with DMS

Stress Test (Option)

  • Compatible with reputable treadmills and bicycles
  • Support exercise blood pressure monitor
  • Customized exercise protocols in addition to Bruce and Modified Bruce

Specifications:

  • Input Circuit: Defibrillation protection
  • Lead: Standard 12 leads
  • Acquisition Mode: Simultaneous 12 lead acquisition (10-24 seconds adjustable)
  • A/D Converter: 24 bits
  • Input Voltage Range: +/-5mVpp
  • Time Constant: >3.2s
  • Frequency Response: 0.05Hz ~ 150Hz (-3dB)
  • Calibration Voltage: 1mV+/-2%
  • Sensitivity: 2.5, 5, 10, 20, 10/5, AGC (mm/mV)
  • Input Impedance: >50MΩ (10Hz)
  • Input Circuit Current: <10nA
  • Noise Level: <12.5µVp-p
  • Anti Baseline Drift: Automatic
  • Patient Leakage Current: NC: <10µA (AC)/10µA (DC) / SFC: <50µA (AC)/50µA (DC)
  • Patient Auxiliary Current: NC: <10µA (AC)/10µA (DC) / SFC: <50µA (AC)/50µA (DC)
  • EMG Filter: 25Hz/35Hz/45Hz/OFF
  • DFT Filter: 0.5/0.15/0.25/0.5/0.32/0.67Hz
  • Lowpass Filter: 150Hz/100Hz/75Hz
  • AC Filter: 50Hz/60Hz
  • CMRR: >115dB
  • Recording Mode: Auto/Manual/Rhythm/R-R/OFF
  • Rhythm Lead: Single lead or three leads selectable
  • Power Supply: AC: 100V-240V, 50/60Hz
  • Battery: Built-in rechargeable Li-ion battery. Battery: voltage=14.8V, for about 350 copies ECG printing
  • Recorder: Thermal printer/External printer
  • Record Paper: Folded paper, Rolled paper
  • Paper Width: 216mm, 210mm
  • Record Speed: 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s (+3%)
  • Dimension: 420mmx330mmx120mm
  • Display: 800x600 dots TFT color LCD
  • External Input/Output: Input: >100kΩ: Sensitivity 10mm/V +5%.
  • Output: <100kΩ: Sensitivity 1V/mV +5%
  • Communication Ports: Ethernet, RS232, USB

Features:

  • 12.1 inch high-resolution foldable color TFT touch-screen
  • Specific function keys for Exercise ECG test
  • Various treadmills or bicycles and Suntech tango+ exercise blood pressure monitor supported
  • Customized exercise protocols
  • ST analysis and reports
  • Complete digital filters, resisting baseline drift, AC and EMG interference
  • Ethernet and RS-232 interface for data transmission to PC
  • Built-in rechargeable Lithium battery
  • Sleep mode for saving energy and extending LCD life
  • Real-time waveform freezing
  • 120 seconds ECG waveform reviewable
  • Waveforms and auto-diagnosis results preview before printing
  • Automatic arrhythmia detection and recording
  • 200 ECGs in internal memory
  • Automatic measurement and interpretation tested with authoritative CSE database
  • Heart rate variability (HRV) analysis
  • PC-based data management and measurement software "Smart ECG Viewer" (Option)
  • Trolley and cable bracket (Option)
