GE Ultrasound Probes
Absolute Medical carries a wide range of GE transducer probes for use in a variety of clinical settings.
The transducer probe is the main part of the ultrasound machine. The transducer probe makes the sound waves and receives the echoes. It is, so to speak, the mouth and ears of the ultrasound machine. Transducer probes come in many shapes and sizes. The shape of the probe determines its field of view, and the frequency of emitted sound waves determines how deep the sound waves penetrate and the resolution of the image. In addition to probes that can be moved across the surface of the body, some probes are designed to be inserted through various openings of the body (vagina, rectum, esophagus) so that they can get closer to the organ being examined (uterus, prostate gland, stomach); getting closer to the organ can allow for more detailed views.

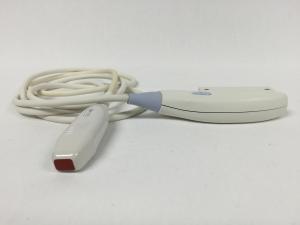

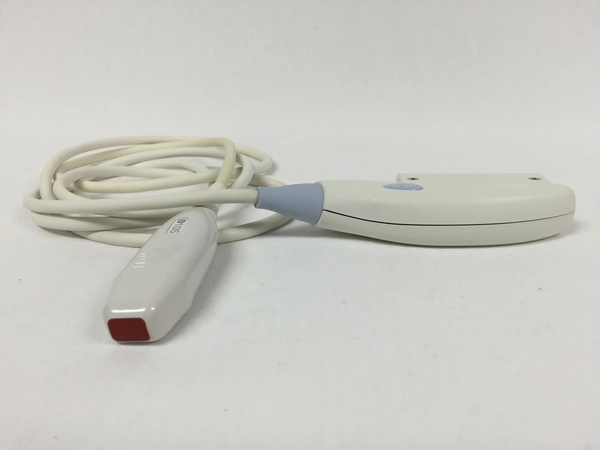

GE 10S-RS Ultrasound Transducer
Phased Array
Applications:
Pediatric Cardiac, Neonatal Head
- Footprint: 14 x 21 mm
- 4.5 - 11.5 MHz
- 90°, 12cm

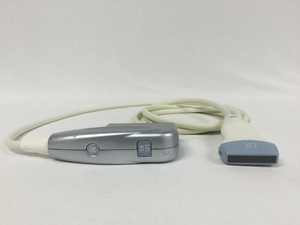

GE 12L-RS Ultrasound Transducer
Wide-band linear array
Applications:
Peripheral vascular, small parts, musculoskeletal, nerve blocks, superficial thoracic/pleural, needle guidance
- Footprint: 12.7 x 47.1 mm
- 5.0 - 13.0 MHz Imaging Frequency
- Multi angle out-of-plane

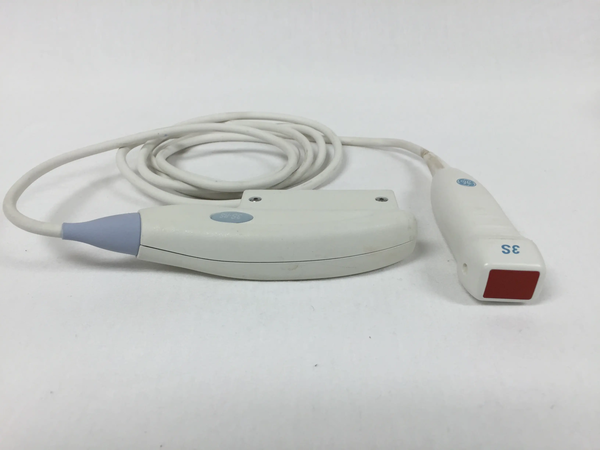

GE 3S-RS Ultrasound Transducer
Wide-bandphased array
Applications:
Adult and pediatric cardiac, abdomen, OB/GYN, thoracic/pleural
- Footprint: 19.3 x 27.6 mm
- 1.7 - 4.0 MHz Imaging Frequency
- Multi angle

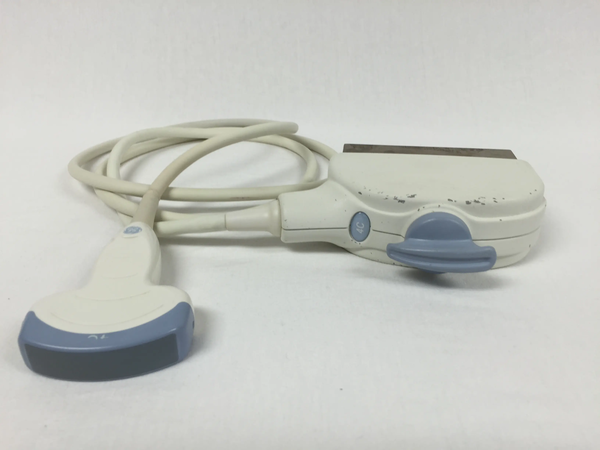

GE 4C Ultrasound Transducer
Applications
Abdomen, OB/GYN, Urology, Vascular
- Footprint: 18x66mm
- Multi-angle, reusable

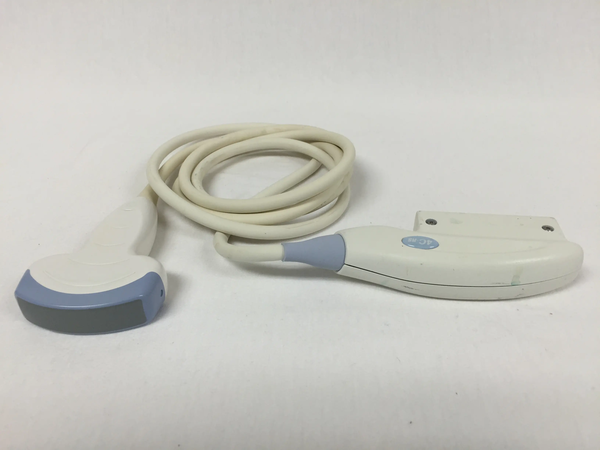

GE 4C-RS Ultrasound Transducer
Wide-band convex array
Applications:
Abdomen, OB/GYN, hip, spine, bladder, conventional musculoskeletal
- Footprint: 18.3 x 66.2 mm
- 2.0 - 5.5 MHz Imaging Frequency
- Multi angle

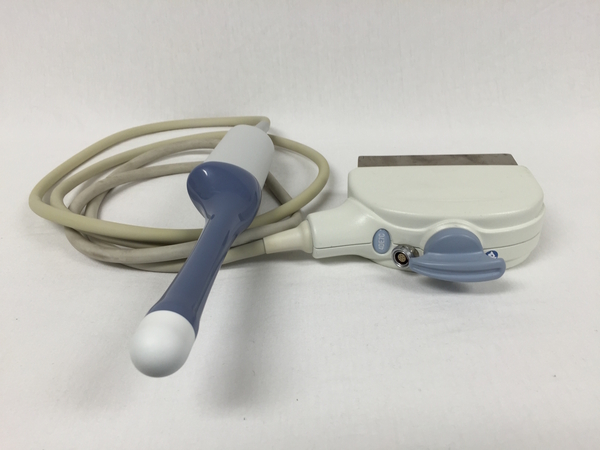

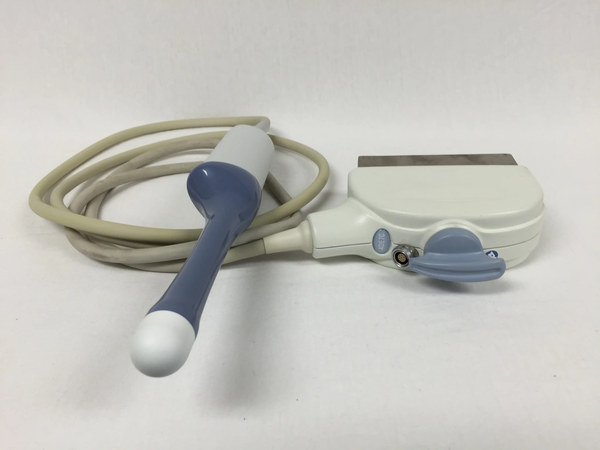

GE 4DE7C Ultrasound Transducer
Applications:
OB/GYN, Urology, Endocavitary
- Footprint: 22x23mm
- 4-9 MHz
- Single-angle, reusable

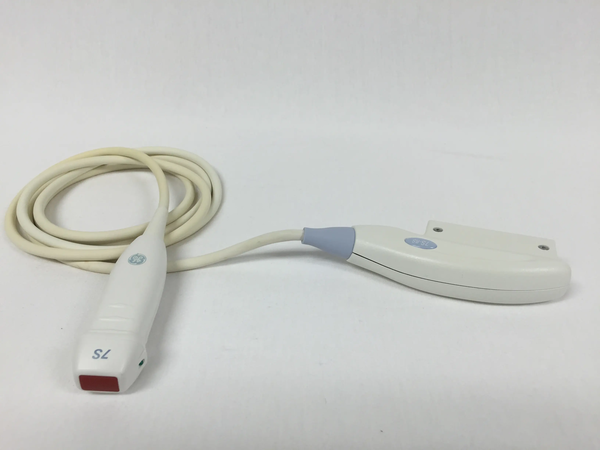

GE 7S-RS Ultrasound Transducer
Phased Array
Applications:
Pediatric Cardiac, Neonatal Head
- Footprint: 17 x 24 mm
- 3.5 - 8.0 MHz
- 90°, 16cm

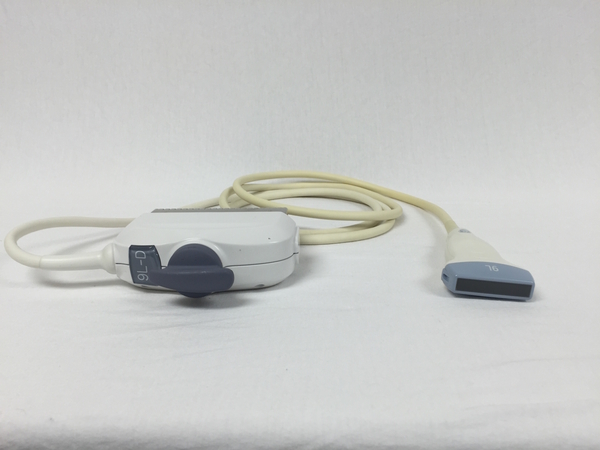

GE 9L-D Ultrasound Transducer
Broad-spectrum linear transducer
Applications:
Vascular, Small Parts, Pediatric, Abdominal
- 2 - 8 MHz, 44mm
- Multi-angle, disposable with a reusable bracket

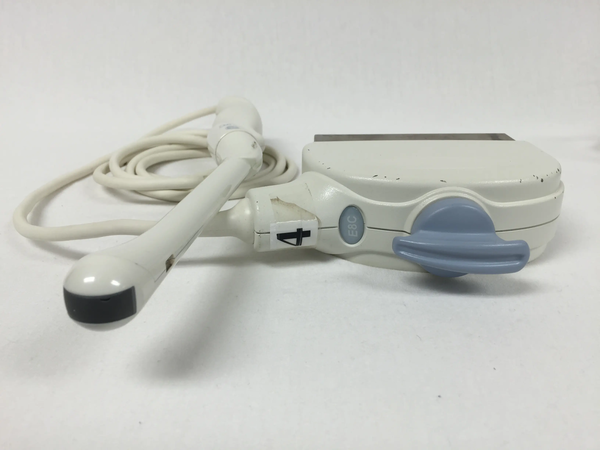

GE E8C Ultrasound Transducer
Applications:
OB/GYN, Urology, Endocavitary
- Footprint: 21x17mm
- Single-angle, reusable, disposable

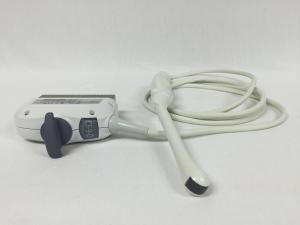

GE IC5-9-D Ultrasound Transducer
Broad-spectrum micro-convex intra- cavitary transducer
Applications:
Obstetrics, Gynecology, Urology
- 3 - 10 MHz
145° - Single-angle, disposable or single-angle, reusable
Volume Navigation

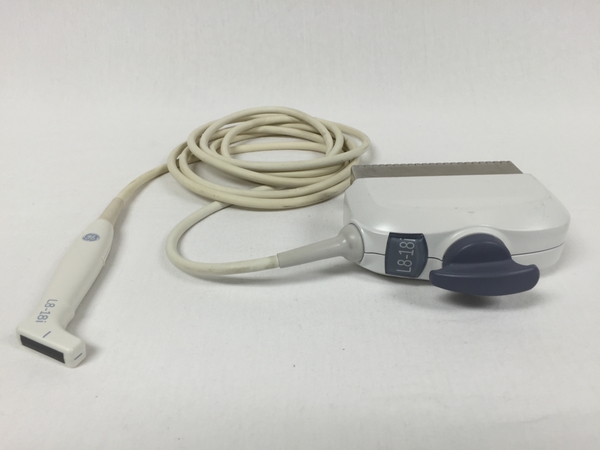

GE L8-18I-D Ultrasound Transducer
Broad-spectrum linear transducer
Applications:
Small Parts, Vascular
- 4 - 15 MHz, 25mm
- Volume Navigation

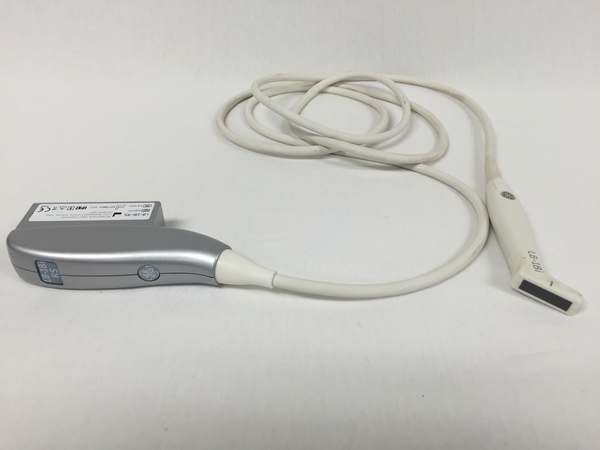

GE L8-18I-RS Ultrasound Transducer
Wide-band high-frequency linear array
Applications:
Peripheral vascular,small parts, nerve blocks, needle guidance, conventional and superficial musculoskeletal
- Footprint: 11.1 x 34.8 mm
- 6.7 - 18.0 MHz Imaging frequency

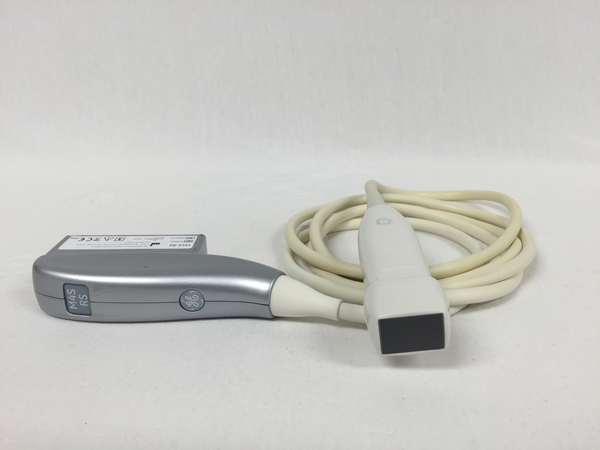

GE M4S-RS Ultrasound Transducer
Phased Array
Applications:
Adult Cardiac, Abdomen
- Footprint: 20 x 28 mm
- 1.5 - 3.6 MHz
- Multi-angle disposable, with a reuseable bracket
90°, 30 cm

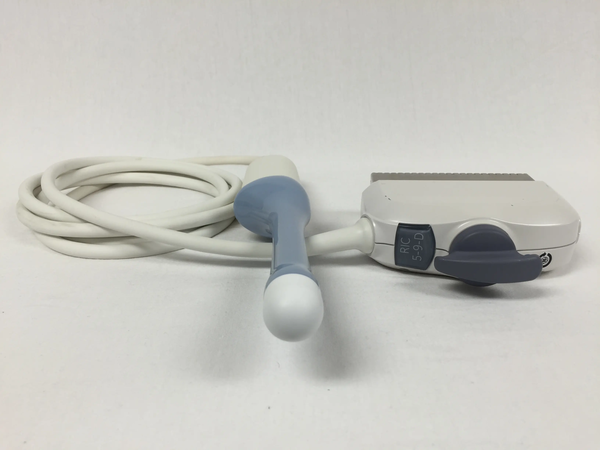

GE RIC5-9-D Ultrasound Transducer
Broad-spectrum real-time 4D micro-convex transducer
Applications:
Obstetrics, Gynecology, Urology
- 4 - 9 MHz, 145°
- Single-angle, reusable

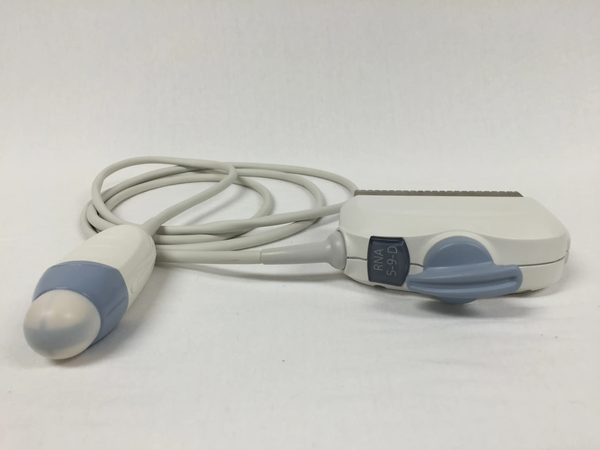

GE RNA5-9-D Ultrasound Transducer
Broad-spectrum real-time 4D micro-convex transducer
Applications:
Neonatal, Pediatrics
- 3 - 10 MHz, 115°
- Single-angle, disposable with a reusable bracket or single- angle, reusable

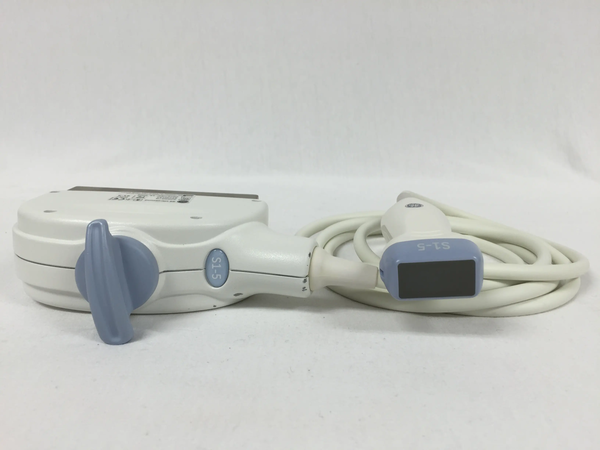

GE S1-5 Ultrasound Transducer
Applications:
Abdomen, OB/GYN
- Multi-Angle
Features:
- Wideband 1-6MHz transducer
- Abdominal, Obstetrics, Gynecology, Abdominal vascular
- 90-degree field of view

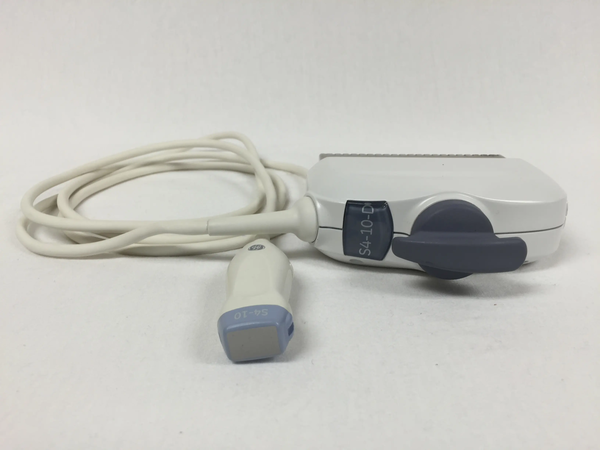

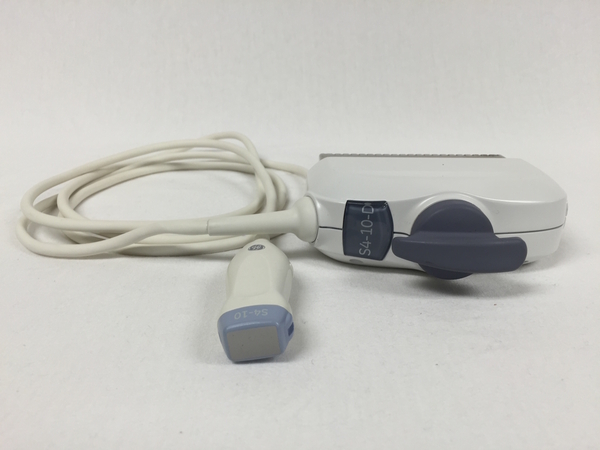

GE S4-10-D Ultrasound Transducer
Broad-spectrum sector transducer
Applications:
Neonatal, Pediatrics
- 3 - 9 MHz, 90°
- Volume Navigation

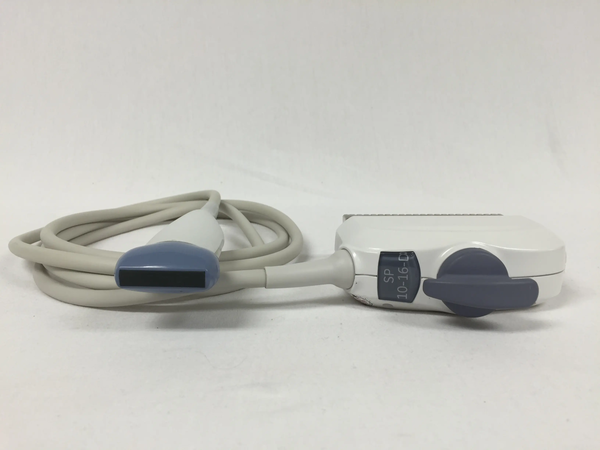

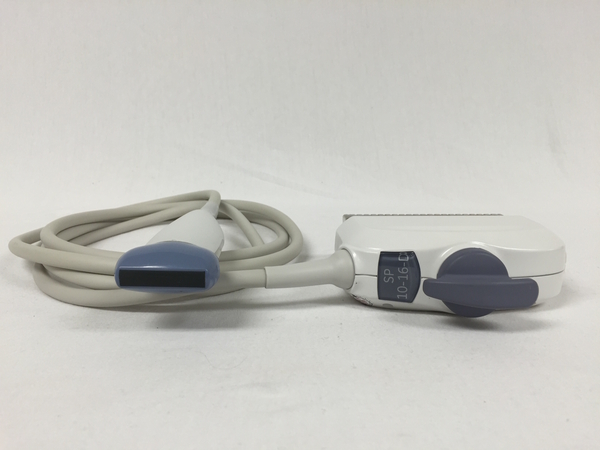

GE SP10-16-D Ultrasound Transducer
Wide Band Linear Transducer
Applications:
Small Parts, Breast Peripheral Vascular, Pediatrics, Musculoskeletal
- 7 - 18 MHz, 33.7 mm
