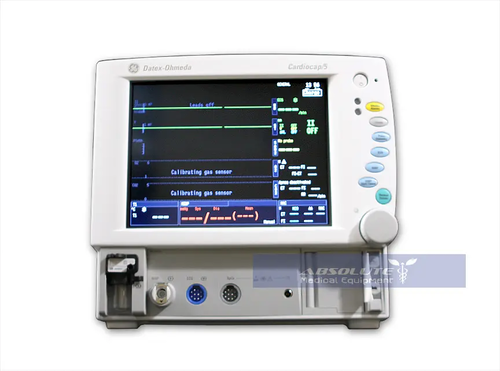

GE Datex Ohmeda Cardiocap/5 Anesthesia Monitor

The compact, all-in-one, anesthesia monitor

The Cardiocap/5 is a compact, all-in-one monitor designed for use in the operating room, ambulatory surgery unit, induction room and PACU. The Cardiocap/5 offers full vital signs monitoring capabilities from the monitoring of oxygenation and circulation to advanced airway gas analysis and ventilation measurement with Patient Spirometry.

Cardiocap/5 networking options extend the capabilities to centralized monitoring and arrhythmia analysis.

The Cardiocap/5 has an outstanding user interface, the trademark of all GE Healthcare monitors, making it easy use, easy to learn and the perfect partner for any anesthesia machine.

Features

• Integrated, hemodynamic and airway gas monitor specifi cally designed for operating and recovery rooms
• Proven intuitive user interface, including anesthesiadedicated menu logic and alarm philosophy, as in all Datex-Ohmeda monitors
• Small and compact for places where space is a premium
• Large numerics and waveforms provide excellent visibility from a distance
• Built-in back-up battery to handle sudden power-down situation
• The frame-integrated mounting piece allows quick and easy mounting on optional wall mount, roll stand and anesthesia machine mounting arms

Hemodynamics

• ECG 5-lead with ST analysis
• Impedance respiration
• Pulse oximetry (SpO2)
• NIBP
• InvBP
• Temperature

Airway Gases

• CO2 (N2O)
• Patient O2
• N2O
• Anesthetic agents with identification

Patient Spirometry

• Tidal volume
• Minute volume
• Flow
• Compliance
• Airway resistance
• Airway pressure

Relaxation

• Neuromuscular transmission

Technical Data
General
Dimensions (WxDxH): 330 x 220 x 300 mm/ 13.0 x 8.7 x 11.8 in

Weight:

• F-MXG: < 11.2 kg, (24.8 lb)
• F-MX: < 10.2 kg, (22.6 lb)

• Power: 100-240 V AC ±10 %, 60/50 Hz
• Back-up battery: 15 min minimum, charging time typically 5h
• Graphical trends: 20 min, 1, 2, 4, 6, 8, 10, 12 and 24h
• Numerical trends: All parameters, sampled every 5 min and after NIBP measurement
• Alarms: Adjustable high and low limit alarms
• Operating temperature: +10° to +40 °C/50° to 104 °F
• Storage and transport temperature: –10° to +50 °C/14° to 122
• Relative humidity: 10 to 85 % noncondensing, in airway 0 to 100% condensing
• Atmospheric pressure: 660 to 1060 hPa/ 500 to 800 mmHg
• Recorder (optional): Thermal array, 3-channels, paper width 50 mm
• Local printing: PCL-5 and later compatible laser printers
• Mounting: Wall mount or roll stand available. See the accessory list or catalog to find more information.
• Safety standards: IEC 60601-1 approved, CE marking according to MDD directive 93/42/EEC, CSA C 22.2.No. 601.1 approved, UL2601-1 approved

Display
Display size and type 10.4 inch LCD active matrix color
Number of traces Up to 6
Display resolution 640 x 480 pixels
ECG
Number of channels 3
Number of leads 3 or 5
ST analysis 3 channels, continuous
Heart rate
Measurement range 30 to 250 beats per min (bpm)
Accuracy ±5 % or ±5 bpm,
whichever is greater
Pacemaker
Pulse detection level 2 to 500 mV
Pulse duration 0.5 to 2 ms
Impedance Respiration
Measurement method Measurement uses ECG
electrodes to measure the
impedance changes as a result
of breathing
Measurement range 4 to 120 breaths/min
Accuracy ±5 % or ±5 resp/min
