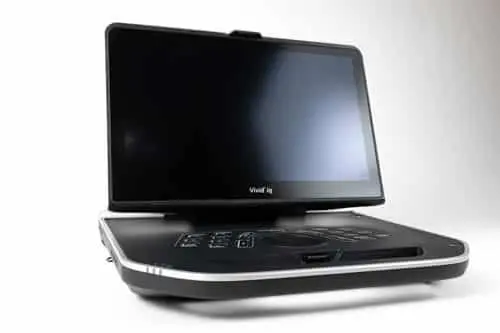

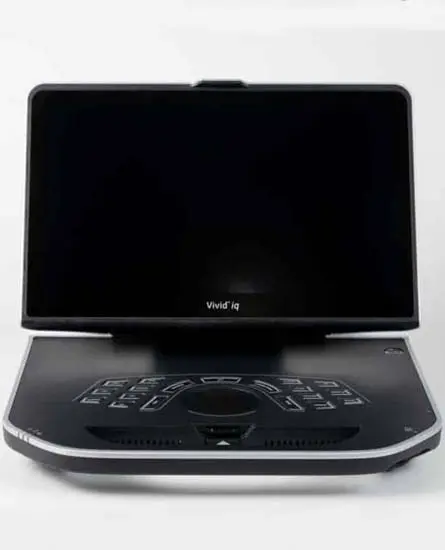

The GE HealthCare Vivid iq is a premium portable cardiovascular ultrasound system
and the first touchscreen-based system in GE’s high-end Vivid portable lineup. Designed for clinicians who
need uncompromising image quality away from the echo lab, Vivid iq delivers exceptional cardiac performance
in a compact, ultra-portable form factor with a modern, tablet-like user interface.
Built on a completely redesigned architecture, the Vivid iq offers image quality that is
significantly improved over earlier GE Vivid i and Vivid q systems, with clearer borders,
better penetration, and more consistent visualization in challenging patients.
Although engineered as a high-performance cardiovascular ultrasound platform, the Vivid iq
also functions exceptionally well as a shared service system. With support for abdominal,
OB/GYN, vascular, MSK, pediatric, neonatal, and small parts imaging, it adapts easily to hospitals, clinics,
ICUs, and outreach environments where flexibility and portability are critical.

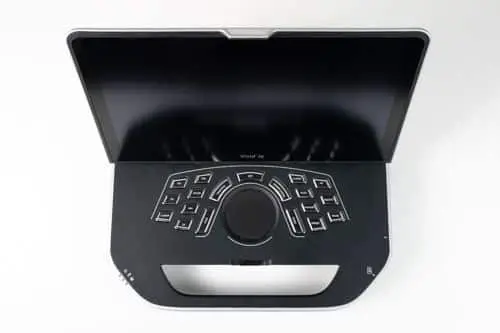

The system’s 15.6-inch full HD capacitive touchscreen replaces traditional button-heavy
consoles with intuitive multi-touch gestures, while a clickable glass trackpad and streamlined control layout
promote efficient, ergonomic scanning. A sealed, splash-resistant surface simplifies cleaning and infection
control, making the Vivid iq well suited for bedside and interventional use.
Key Features:
- Premium portable cardiovascular ultrasound with image quality comparable to larger cart-based systems.
- Industry-first touchscreen-based Vivid platform with multi-touch gestures and modern workflow design.
- Ultra-portable design: lightweight system weighing approximately 11.5 lb (5.2 kg) with battery.
- 15.6-inch Full HD display (1920 × 1080) with adjustable viewing angles for scanning and reporting.
- Advanced cardiac imaging modes: 2D, Tissue Harmonic Imaging, Color Doppler, Power Doppler, PW, CW, M-Mode, Tissue Doppler, strain imaging, and automated quantification tools.
- AI-assisted workflow tools (configuration dependent) including Auto EF, AFI strain analysis, and automated Doppler measurements to reduce keystrokes and exam time.
- Shared service capability: cardiac, abdominal, OB/GYN, vascular, MSK, pediatric, neonatal, and small parts imaging.
- Battery-powered operation for scanning without mains power and fast resume from standby.
- Comprehensive data management: DICOM Store, Print, Worklist, Structured Reporting, and EchoPAC™ compatibility.
GE Vivid iq Ultrasound System Specifications:
| System Type |
Portable laptop-style cardiovascular and shared service ultrasound system. |
| Weight |
11.5 lb (5.2 kg) with battery installed. |
| Display |
15.6-inch capacitive touchscreen, Full HD 1920 × 1080 resolution. |
| User Interface |
Multi-touch LCD screen with gesture control, clickable glass trackpad, and streamlined hard-key layout. |
| Imaging Modes |
2D, Tissue Harmonic Imaging, Color Doppler, Power Doppler, PW Doppler, CW Doppler, M-Mode, Tissue Doppler, strain and strain rate imaging (options/configuration dependent). |
| Architecture |
All-digital beamforming architecture with advanced image processing and raw data acquisition for post-processing. |
| Clinical Applications |
Cardiac, transesophageal, intracardiac, vascular, abdominal, OB/GYN, MSK, pediatric, neonatal, small parts, and shared service imaging. |
| Storage & Review |
Internal solid-state storage, cine review, raw data archiving, and EchoPAC™ offline analysis compatibility. |
| Connectivity |
Multiple USB ports, Ethernet, HDMI, ECG input, DICOM networking, and optional wireless connectivity. |
| Power |
AC operation (100–240 VAC, 50/60 Hz) with rechargeable battery for mobile scanning. |
