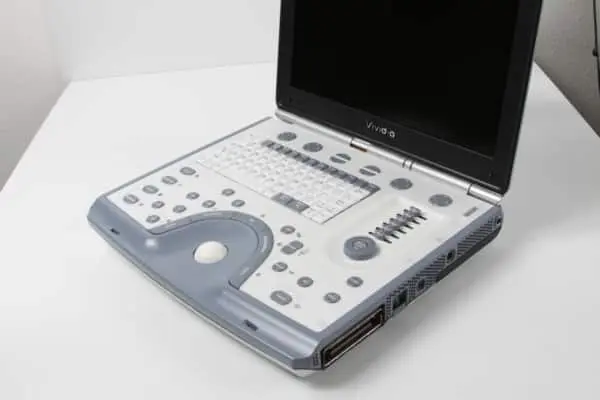

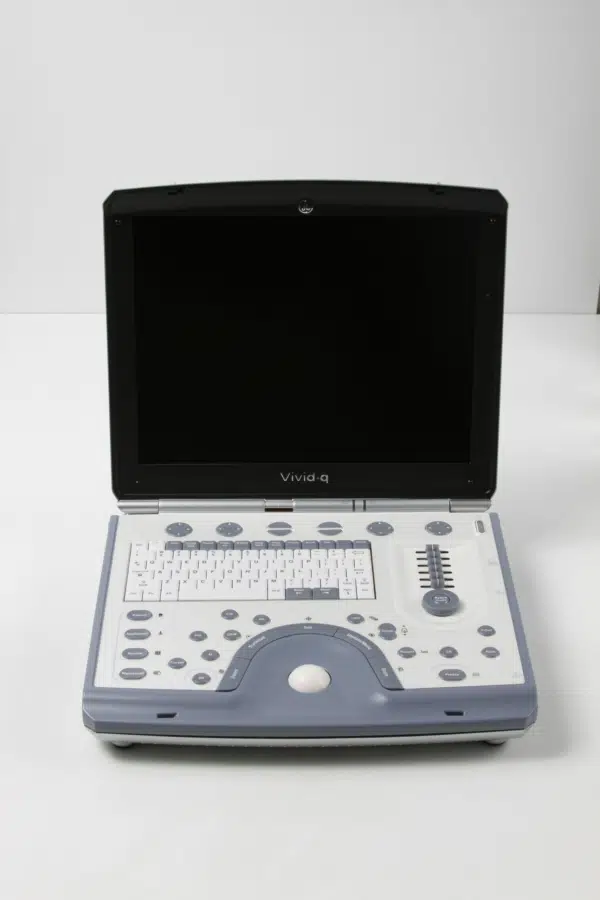

GE HealthCare Vivid q Ultrasound Machine

The GE HealthCare Vivid q is a high-performance, battery-operated portable ultrasound system designed for fast-paced cardiovascular imaging while remaining flexible enough for abdominal, vascular, small parts, perioperative monitoring, and even 2D ICE imaging. It pairs strong diagnostic image quality with a full-size, customizable keyboard layout that supports efficient scanning, quick adjustments, and consistent exam workflows in clinics, hospitals, and pre-op environments .

Built on GE’s TruScan Architecture, Vivid q supports raw data storage with advanced post-processing, broad system connectivity, and compatibility with EchoPAC for review and analysis. The system includes a 15-inch high-resolution TFT LCD (1600 × 1200) with a screen that can close or tilt from 0–180° and automatically enters standby when closed for faster boot-up when reopened.

For cardiac performance, Vivid q supports advanced options such as Automated Function Imaging (AFI), Tissue Velocity Imaging (TVI), Tissue Tracking (TT), and Tissue Synchronization Imaging (TSI), along with triplex workflows and TEE capabilities (options/configuration dependent). A wide probe ecosystem supports phased, linear, curved, TEE, and ICE solutions, making Vivid q a strong choice when you need portable cardiac imaging without giving up clinical breadth.

Key Features:

• Portable cardiovascular ultrasound platform for cardiac, vascular, abdominal, small parts, perioperative monitoring, and 2D ICE imaging.
• 15-inch high-resolution TFT LCD with 1600 × 1200 resolution and wide-angle visibility; tilt range 0–180°.
• Battery-powered operation designed for more than 1 hour of scanning plus standby mode for fast boot-up.
• TruScan Architecture with raw data storage and advanced post-processing on recalled loops/images.
• Triplex imaging support with flexible duplex/triplex display layouts (side-by-side or top-bottom).
• Advanced Doppler suite: Color Doppler, Power Doppler, PW, CW, HPRF, Color M-Mode, anatomical M-Mode (options/configuration dependent).
• Speckle reduction and clarity tools including Ultra-Definition clarity settings and UD-SRI (vascular speckle reduction imaging).
• Cardiac quantification options: AFI, automated EF calculation, TVI/TT/TSI (options/configuration dependent).
• TEE and ICE support (probe/connectors and options dependent), including multipane TEE probe support indicators on screen.
• Connectivity & reporting: DICOM networking options, EchoPAC connectivity, configurable HTML-based reporting, export to common formats (configuration dependent).
