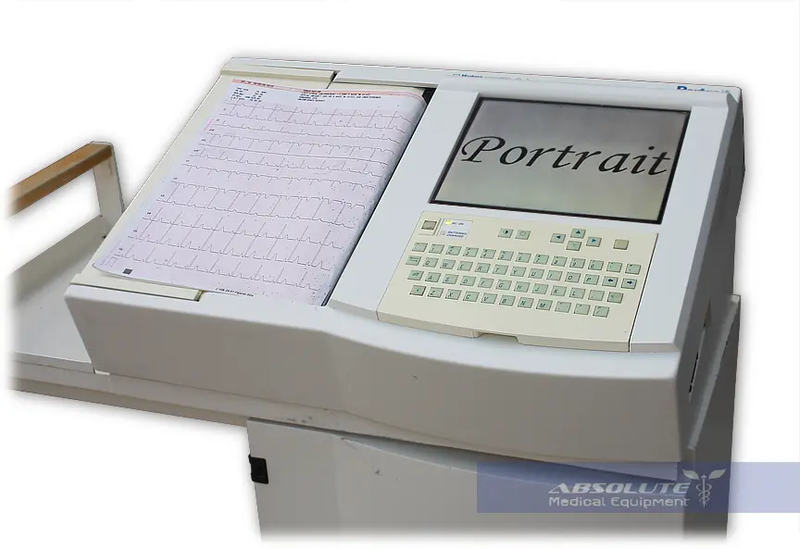

Mortara Portrait 12 Lead Interpretive EKG Machine

Mortara Portrait 12 Lead Interpretive EKG Machine

Vendor: Mortara
$1295.00 $5999.00
Please, enter quantity for at least one product
Quantity unavailable. Try selecting a smaller quantity.
More Product Pictures
  • Units are in nice condition
  • Patient Ready

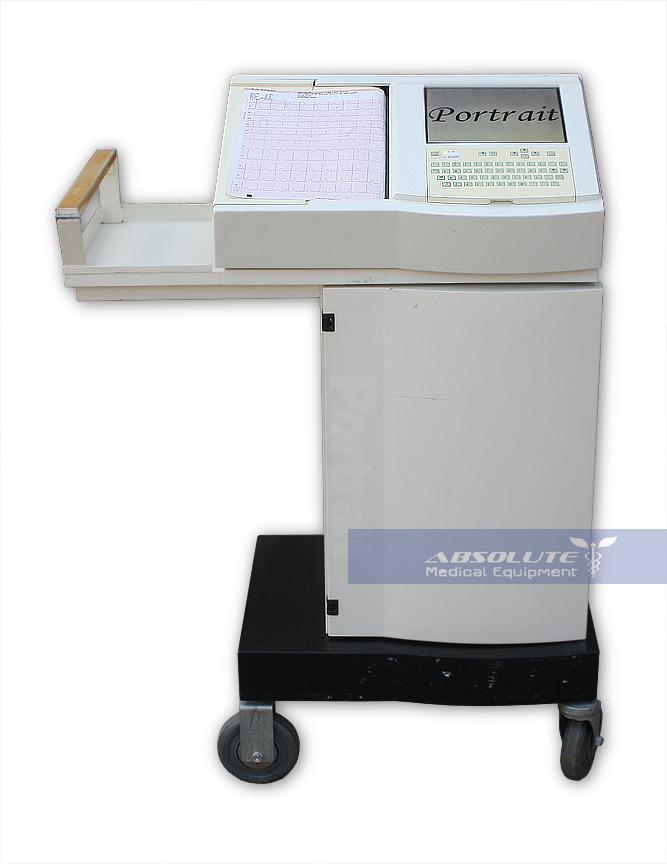

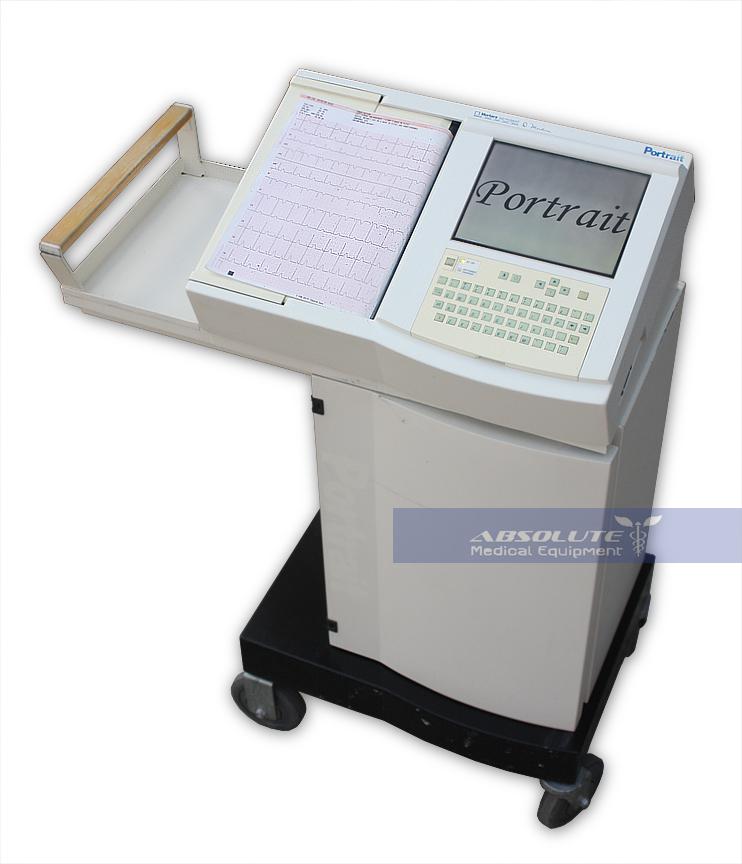

  • Includes cart
  • 90 day warranty
  • 12 Lead

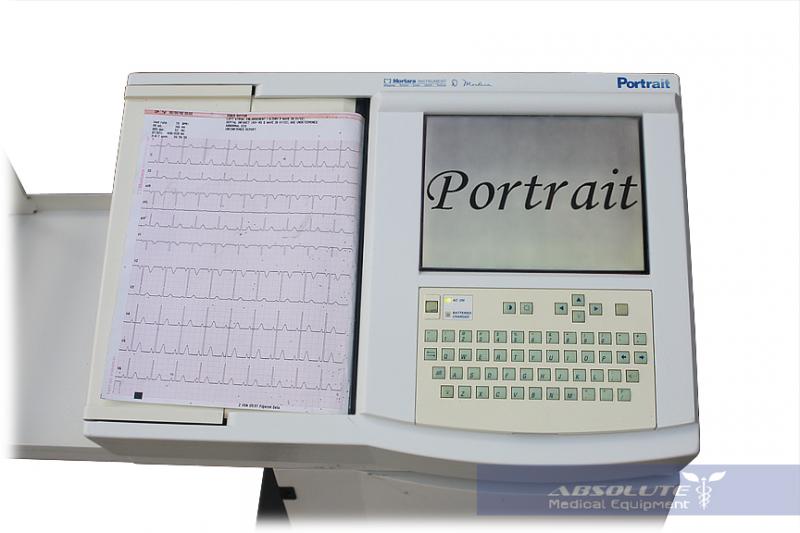

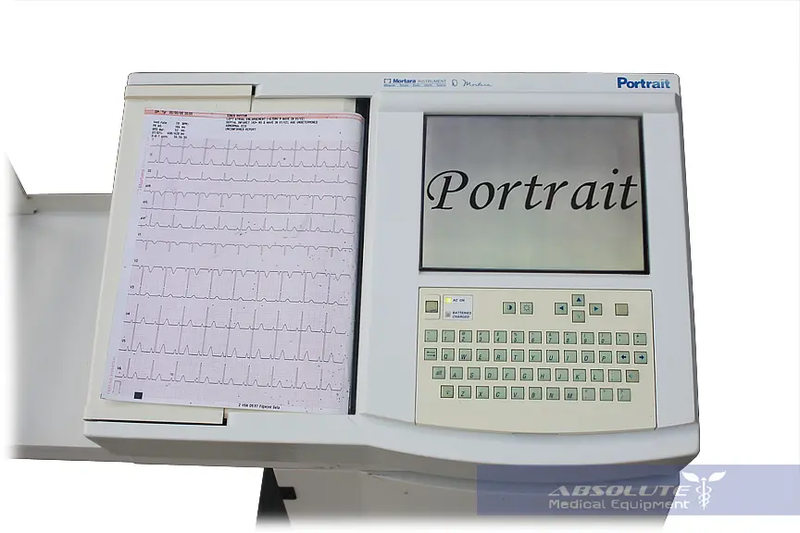

  • Preview Screen
  • Prints on 8.5" x 11" paper
The Portrait Electrocardiograph provides a superior presentation of ECG waveforms by presenting all 12 leads simultaneously in a vertical or "Portrait" format. Viewing leads on the high-contrast LCD screen prior to acquisition reduces the need for a repeat ECG. Mortara Instrument’s exclusive Source Consistency Filter decreases noise without changing the ECG waveform while exceeding AHA standards.

Portrait provides high resolution ECG records in your choice of three formats: 12 channel, six channel or six channel plus a 60-second rhythm strip. Instead of other electrocardiographs’ 10-second time period, Portrait’s 60-second rhythm acquisition format provides improved documentation of rhythm abnormalities and better assurance of accurate rhythm analysis interpretation.

Our unique P-Wave enhancement feature evaluates atrial activity and pacer function during pacemaker checks. Portrait’s extended battery operation and internal storage capacity of up to 300 ECGs provides increased flexibility.

Portrait is a flexible, cost effective, easily operated diagnostic tool – just one of Mortara Instrument’s family of superior ECG equipment. It’s designed to keep pace with your electrocardiographic needs now and into the future.


PortraitTM
Electrocardiograph

Feature Specifications
Input Channels Simultaneous acquisition of all leads
Standard Leads Acquired I,II,III,aVR, aVL,aVF, V1,V2,V3,V4,V5,V6
Input Impedance Meet or exceed the
requirements of
ANSI / AAMI EC11
Input Dynamic Range
Electrode Offset Tolerance
Common Mode Rejection
Frequency Response
Patient Leakage Current Meet or exceed the
requirements of
ANSI / AAMI ES-1
Chassis Leakage Current
A/D Conversion 20 bits (1.17 microvolt LSB)
Digital Sampling Rate 10,000 s/sec/channel used for pacemaker spike detection.
500 s/sec/channel used
for recording and analysis
Device Type Type I, Class CF
Special Functions Baseline Filter; AC interference rejection; source consistency
filter
Recording Technique Computer-controlled thermal
dot array; 200 dots/inch
Paper Type Thermal sensitive;285.9 mm x 79.4mm , Z-fold(8.5 x 11 or A4)
Thermal Writer Speeds 5, 10, 25, 50 mm/s
Sensitivity 5, 10, or 20 mm/mV)
Weights With cart: 90lbs (40.82kg)With cart and paper:
94lbs (42.64kg)Without cart and paper:
26lbs (11.79kg)
Dimensions With cart: 29.5 x 16.5 x 41 in
(74.93 x 41.91 x 104.14 cm)Without cart: 21 x 14.5 x 4.5 in
(53.34 x 36.83 x 11.43 cm)
Power Requirements 100-240 V AC at 50 / 60 Hz or internal batteries
Multiple Output Formats User Selectable
