Broadband Linear Array Transducer

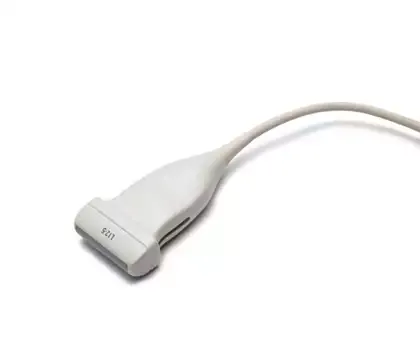

The Philips L12-5 50 mm Linear Array Transducer is a fine-pitch,
high-resolution linear array probe designed for exceptional image detail in
superficial and small-structure applications. Operating across an extended
12 to 5 MHz frequency range, this versatile transducer features a
50 mm effective aperture length and supports 10° of trapezoidal imaging.
It provides advanced imaging modes including steerable pulsed wave Doppler,
color Doppler, Color Power Angio, Panoramic,
SonoCT, XRES, and harmonic imaging for consistent clarity
and diagnostic confidence.
The L12-5 50 mm is optimized for high-resolution superficial imaging applications such as
vascular, small parts, breast, and musculoskeletal studies, and it also supports
contrast applications* and strain-based elastography on compatible
Philips systems (EPIQ 7, EPIQ 5, and iU22). The transducer supports biopsy guide capabilities,
providing precise needle guidance during interventional procedures.
This pre-owned unit offers the same trusted Philips performance and imaging versatility
at a significantly lower cost, making it an excellent choice for clinics and hospitals
seeking to expand their ultrasound capabilities while maintaining budget efficiency.
| Technology |
Broadband |
| Number of Elements |
256 |
| Frequency Range |
12 – 5 MHz |
| Array Type |
Linear |
| Aperture |
50 mm |
| Field of View |
– |
| Volume of Field of View |
– |
| Applications |
Abdominal bowel, general OB, vascular (carotid, arterial, venous, superficial),
pediatric (abdomen and hip), small parts (thyroid, testicle, breast), and MSK |
| Biopsy Capable |
Yes |
| Image Fusion Navigation Capable |
Yes |
