Philips C5-1 Ultrasound Transducer Probe for IE33
Broadband curved array transducer with PureWave crystal technology
- Technology: Broadband
- Number of elements: 160
- Frequency range: 5 - 1 MHz
- Array Type: Curved
- Aperture: 55.5 mm
- Field of view: 111°
- Modes: 2D, steerable pulsed, High-PRF, and color Doppler, color power angio (CPA), directional CPA, SonoCT, variable XRES and multivariate harmonic imaging
- Applications: General purpose abdominal (adult and pediatric, including vascular), bowel, obstetrical, gynecological, prostate and interventional applications
- Biopsy capable: Yes
- Image Fusion Navigation capable: Yes

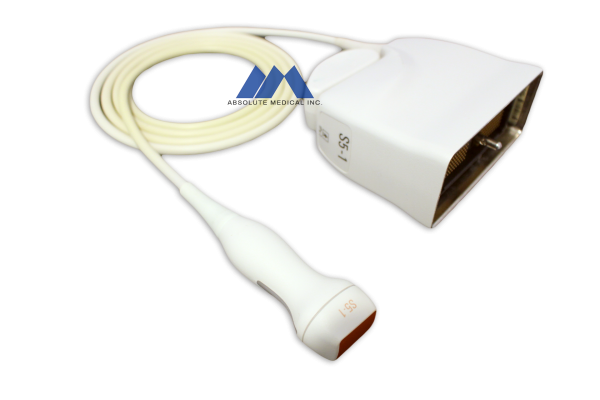

Philips S5-1 Ultrasound Transducer Probe for cx50
Broadband sector array transducer
- Technology: Broadband, PureWave
- Number of elements: 80
- Frequency range: 5 - 1 MHz
- Array Type: Sector
- Aperture: 20.3 mm
- Field of view: 90°
- Modes: 2D, CW, steerable pulsed wave, High-PRF, color Doppler,tissue Doppler, XRES, AutoSCAN, iSCAN, and harmonic imaging
- Applications: Adult echo, abdominal, pediatric echo, and TCD applications
- Biopsy capable: Yes
- Image Fusion Navigation capable: No

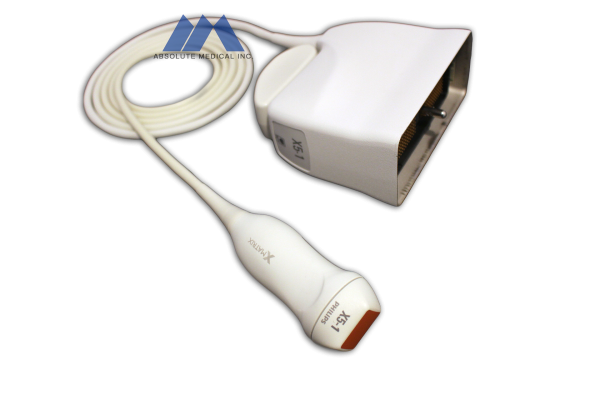

Philips X5-1 Ultrasound Transducer Probe for IE33
xMATRIX array transducer with PureWave crystal technology
- Technology: xMATRIX, PureWave
- Number of elements: 3040
- Frequency range: 5 - 1 MHz
- Array Type: Sector, Volume Sector
- Aperture: Proprietary
- Field of view: 90°
- Volume of field of view: 98° x 98°
- Modes: 2D, M-Mode, Color M-Mode, PW, CW, Color, TDI, TDI PWD, xPlane, Live 3D, Live 3D Color, Harmonic Imaging, Advanced XRES, 2D/Live 3D LVO, iRotate and xPLANE
- Applications: Adult/Pediatric Cardiac, Abdominal Vascular, TCD
- Biopsy capable: No
- Image Fusion Navigation capable: No
- Physical dimensions: 9.2 x 3.9 x 2.9 cm (3.6 x1.5 x 1.1 in) LWD
