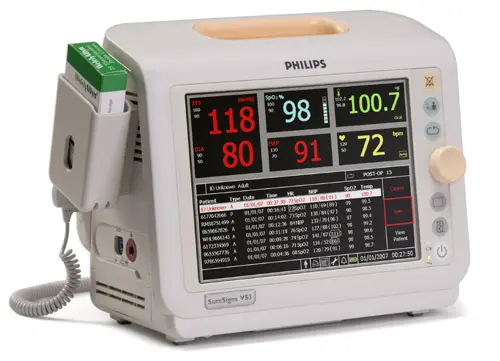

The SureSigns VS3 monitor is the newest addition to the Philips low acuity monitoring line. The unit offers blood pressure, pulse oximetry and temperature information in various configurations for adult, pediatric and neonatal patients. The unit has a large color 8.4” display with “pop up” windows. The unit stores up to 400 patient records and has battery backup. The unit can be ordered with Massimo SET tm, Nellcor Oximax tm or Philips SPO2 technology. The unit can be utilized as a spot check monitor and has bar code capabilities.
-
Integrated bedrail hanger
-
8.4 (20.3 cm) TFT, SVGA color display with up to four waveforms and numerics is bright and easy to read.
-
Sturdy handle and rugged housing for easy portability.
-
Lightweight, at only 3.2 kg (7.1 lbs) including battery.
-
Standard lithium ion battery enhances battery operation and charging performance.
-
4 hour battery operation.
-
Non-invasive blood pressure (NBP), including manual, interval, and STAT modes.
-
Printing via integrated strip recorder for convenient documentation whenever its needed (optional).
-
Up to 96 hours of trending
-
User-selectable 3- and 5-lead ECG with basic arrhythmia and pacemaker detection including a leads off indicator feature.
-
Philips SpO2 technology. Compatible with a wide variety of adult, pediatric, and neonatal sensors from Philips, Nellcor, and Masimo.
Better patient care
Because the SureSigns VS3 user interface is intuitive and
easy to use, you can focus on what matters most – patient
safety and comfort. The full-color screen contains large,
easy-to-read numerics, a scrollable list of stored patient
records, and an optional SpO2 waveform display. The
innovative pop-up screens, fixed keys, and icon-based
menus provide quick access to frequently used features.
Available SureSigns VS3 measurements include blood
pressure, pulse oximetry, pulse rate, and temperature.
Designed for a wide variety of care environments, the
SureSigns VS3 is suitable for the general care ward,
emergency department triage, out-patient surgery,
urgent care centers, or anywhere else you need basic
vital signs monitoring.
Superior quality and support
The SureSigns VS3 monitor comes with the quality you
expect from Philips and a design that is easy to support.
Every monitor includes a lithium ion battery and AC
power cord clip to enhance battery operation and
charging performance. Software upgrades, via the USB
port, are remarkably quick and easy.
Replacement parts that are compatible with the
SureSigns VM monitors help to streamline parts
inventory management, and the sleek modular design
simplifies monitor repair. As always, Philips monitors
come with a world-class warranty and 24-hour*
telephone support from our global response centers.
Product specifications
Width, height, depth: W 26 cm (10.2 ̋), H 22 cm (8.6 ̋), D 14.5 cm (5.7 ̋)
Screen: 20.3 cm (8.4 ̋) SVGA TFT-AM LCD
NBP
Oscillometric using stepwise deflation pressure
Adult/pediatric measurement range
- Systolic: 30–255 mmHg (4–34 kPa)
- Diastolic: 15–220 mmHg (2–29 kPa)
- Mean: 20–235 mmHg (2.7–31.3 kPa)
Neonatal measurement range
- Systolic: 30–135 mmHg (4–18 kPa)
- Diastolic: 15–110 mmHg (2–14.7 kPa)
- Mean: 20–125 mmHg (2.7–16.7 kPa)
Blood pressure accuracy:±5mmHg(.70kPa)
Pulse rate accuracy: ±2 bpm or ±2% (whichever is greater)
SpO2
- Meets EN ISO 9919 standard
- Measurement range: 0–100%
- Accuracy: depends on sensor
Temperature
- Modes:PredictiveandMonitored
- Probe sites: oral, rectal, or axillary
- Range:26.7–43.3OC(80–110OF)
- Accuracy:±0.2OC(±0.4OF)
- Meets EN12470-3 standard
Battery
- Lithium ion, 11.1 V
- Operating time: 4 hours with NBP every 15 minutes.
Data output: HL7 format, via Ethernet port
Patient type: Adult, pediatric, neonatal
