Hospital-Grade Defibrillation and Monitoring for BLS and ALS Teams

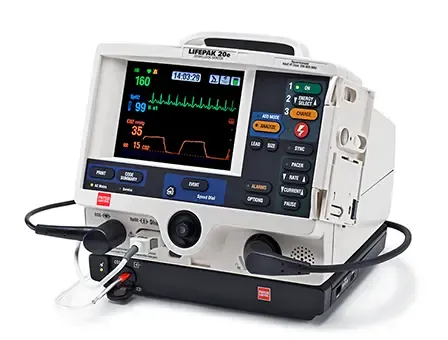

The Physio-Control LIFEPAK® 20e Defibrillator/Monitor is a compact, crash-cart–ready
defibrillator designed to support both basic life support (BLS) and
advanced life support (ALS) responders. With its intuitive two-tier user interface,
the 20e can function as an easy-to-use AED for first responders and, with the door
opened, as a full-featured manual defibrillator/monitor for ALS teams. It delivers
up to 360 joules of biphasic energy for difficult-to-defibrillate patients and integrates
seamlessly into the Stryker Resuscitation Management System.
Designed specifically for in-hospital resuscitation, the LIFEPAK 20e supports
comprehensive monitoring with 3- or 5-lead ECG, optional SpO2,
noninvasive pacing, and waveform capnography to confirm airway placement
and assess CPR quality. A built-in CPR metronome helps maintain guideline-compliant
compression rates, while cprMAX™ Technology and the Shock Advisory System™ support
high-quality, protocol-driven resuscitation.
With the optional CodeManagement Module®, the LIFEPAK 20e can
wirelessly transmit patient and device data for post-event review in CODE-STAT™
software and for status monitoring through the LIFENET® system, helping hospitals improve readiness
and performance over time. Daily auto tests, on-screen battery status, and robust construction ensure
that the device is ready whenever a code is called.
This pre-owned unit offers the same trusted LIFEPAK technology and compatibility with
existing Physio-Control accessories at a significantly lower cost, making it an excellent
choice for hospitals seeking dependable, standardized defibrillation and monitoring across the facility.
Key Features:
- Dual-mode operation: AED mode for BLS teams and manual mode for ALS providers.
- Biphasic truncated exponential waveform with energy levels up to 360 J.
- Integrated waveform capnography, ECG, SpO2, and pacing options.
- CPR metronome and cprMAX™ setup options to support guideline-compliant CPR.
- Optional CodeManagement Module® for wireless data transmission and device status monitoring.
- Crash-cart–friendly footprint with ergonomic handle and stable design for transport.
- Daily Auto Test mode, visual battery indicators, and service alerts to support readiness.
Physio-Control LIFEPAK 20e Defibrillator/Monitor Specifications:
| Operating Modes |
Manual mode (ALS): energy selection to 360 J, synchronized cardioversion, pacing.
AED mode (BLS): Shock Advisory System™ with shock/no-shock prompts and configurable AED display. |
| Waveform |
Biphasic Truncated Exponential (BTE) |
| Energy Output |
Manual: 2–360 J selectable; user-configurable sequences up to 360 J.
AED: protocol of three sequential shocks, 150–360 J (configurable). |
| Charge Time |
< 5 s to 200 J; < 7 s to 360 J with fully charged battery |
| Defibrillation / Pacing |
Manual and AED defibrillation using QUIK-COMBO® therapy electrodes or paddles;
External pacer: Demand or Non-Demand, 40–170 ppm, 0–200 mA (monophasic constant-current). |
| Monitoring Parameters |
ECG via 3- or 5-lead cable, therapy electrodes, or paddles;
Optional Masimo SET® SpO2; optional Microstream® EtCO2 (with CodeManagement Module);
Heart rate 20–300 bpm digital display. |
| Display |
4.53 in × 3.40 in (115.2 × 86.4 mm) color LCD, 320 × 240 resolution;
Minimum 3.7 s ECG display; 25 mm/s waveform sweep speed (ECG and SpO2). |
| Data Management |
Internal memory stores CODE SUMMARY™ event records, alarms, and up to 45 minutes of continuous ECG;
Infrared (IrDA) data transfer; optional wireless transmission via LIFENET® network (with CodeManagement Module). |
| Power |
AC: 100–120 V or 220–240 V, 50/60 Hz, < 120 VA (20e only) / < 150 VA (with CodeManagement Module).
Internal backup battery: provides up to ~210 min monitoring or ~140 shocks at 360 J before shutdown. |
| Dimensions (H × W × D) |
LIFEPAK 20e: 21.3 × 26.2 × 26.2 cm (8.4 × 10.3 × 10.3 in).
With CodeManagement Module: approx. 25.4 × 26.2 × 29.7 cm (10.0 × 10.3 × 11.7 in). |
| Weight |
Defibrillator/monitor only (with pacing, SpO2 and door): ~5.58 kg (12.3 lb);
Additional CodeManagement Module adds ~1.63 kg (3.6 lb). |
| Environmental |
Operating temperature 5–40 °C (41–104 °F);
Relative humidity 5–95% non-condensing; drop-tested to 45.7 cm (18 in) onto steel; water resistance IPX1. |
| Typical Applications |
In-hospital crash carts, emergency departments, cath labs, procedural areas, and step-down units;
Adult and pediatric defibrillation, cardioversion, pacing, and physiologic monitoring. |
