Simple, Reliable Defibrillation for Public Access and First Responders

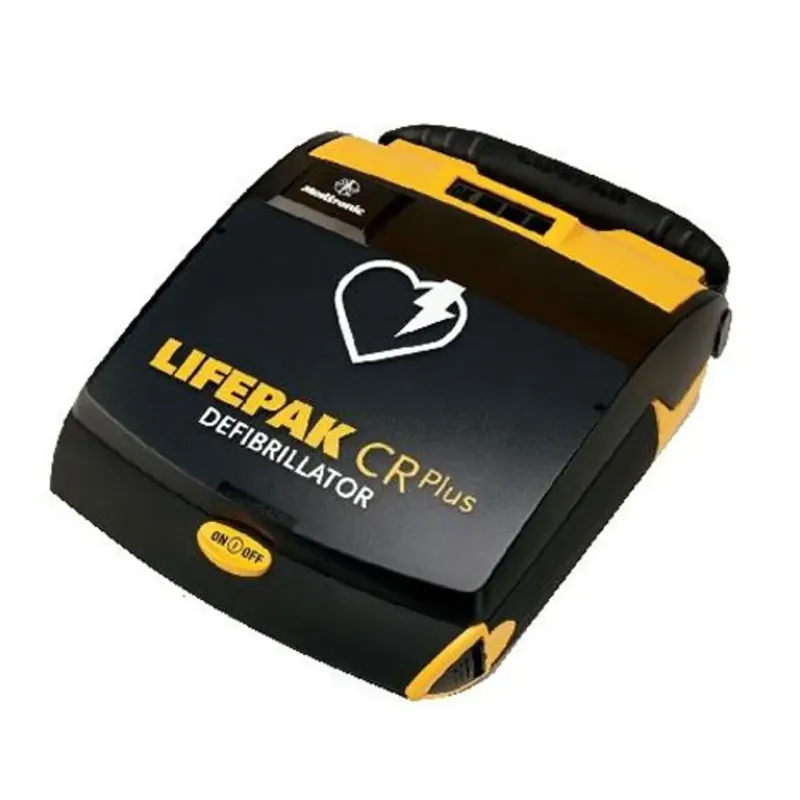

The Physio-Control LIFEPAK® CR Plus Defibrillator is a fully automatic
automated external defibrillator (AED) designed specifically for the first person
to respond to a victim of sudden cardiac arrest. Using the same advanced technology trusted by
professional rescuers, the CR Plus combines simple two-step operation with
biphasic truncated exponential (BTE) defibrillation and escalating energy up to
360 joules, helping deliver effective therapy when every second counts.
Operation is intentionally straightforward: Step 1 – turn the device on,
Step 2 – apply the electrode pads. The LIFEPAK CR Plus then analyzes the rhythm
and, in the fully automatic version, delivers a shock when appropriate—no shock button required.
Clear, calm ClearVoice™ voice prompts, tones, and on-screen graphics guide the responder
through each step, while the Shock Advisory System™ ensures a shock is only delivered when needed.
To support readiness, the CR Plus performs regular automatic self-tests and displays status
on a highly visible Readiness Display. The unique SafeGuard Power System™ pairs a
long-life internal battery with a replaceable CHARGE-PAK™ battery charger and synchronized
QUIK-PAK™ electrode set, simplifying maintenance and keeping the AED mission-ready. QUIK-PAK electrodes
are preconnected and compatible with other LIFEPAK defibrillators, allowing seamless transfer
of care when EMS arrives.
This pre-owned unit delivers the same proven LIFEPAK performance and compatibility at a
significantly lower cost, making it an excellent choice for offices, schools, fitness
centers, churches, industrial sites, and other public locations that want a simple, powerful AED program.
Key Features:
- Fully automatic or semi-automatic AED operation with simple two-step use.
- Biphasic truncated exponential waveform with escalating 200 J, 300 J, 360 J energy protocol.
- ClearVoice™ prompts, audible tones, and graphic icons guide rescuers through each step.
- Shock Advisory System™ analyzes ECG and charges only when a shock is appropriate.
- SafeGuard Power System™ with CHARGE-PAK™ battery charger and synchronized QUIK-PAK™ electrodes.
- Regular automatic self-tests and an easy-to-read Readiness Display for confidence in device status.
- Compact and lightweight design with integrated handle for easy placement and transport.
- Electrodes are compatible with professional LIFEPAK defibrillators for rapid handoff to EMS.
Physio-Control LIFEPAK CR Plus Defibrillator Specifications:
| Device Type |
Fully automatic or semi-automatic external defibrillator (AED) |
| Waveform |
Biphasic truncated exponential with voltage and current duration compensation for patient impedance |
| Energy Output |
Configurable multiple levels from 150–360 J; factory default sequence
200 J, 300 J, 360 J |
| Energy Accuracy |
±10% into 50 Ω; ±15% into 25–100 Ω |
| Shock Advisory System™ |
ECG analysis system advises whether defibrillation is appropriate; device charges and shocks only
when a shockable rhythm is detected |
| Charge Time |
< 9 s to 200 J; < 15 s to 360 J with fully charged device |
| Device Capacity |
Typical: 30 full discharges or 210 minutes of “on time”;
Minimum: 20 full discharges or 140 minutes of “on time” (with fully charged device) |
| Power System |
CHARGE-PAK™ battery charger (Li/SO2Cl2, 11.7 V, 1.4 Ah) maintaining internal battery;
CHARGE-PAK and QUIK-PAK electrodes replaced together (typical 2-year interval or after use) |
| Electrodes |
QUIK-PAK™ preconnected adult electrodes, anterior–lateral placement, protected under top cover;
Optional infant/child reduced-energy electrodes for patients < 8 years or < 25 kg (55 lb) |
| Readiness & Indicators |
Readiness Display with OK, CHARGE-PAK, Attention, and Service indicators;
Automatic self-tests: weekly, monthly, on power-up, and during operation |
| Data Storage |
Internal digital memory; dual patient storage with minimum 20 minutes ECG for current patient and
summarized data for previous patient; minimum 200 time-stamped event markers; wireless transfer
to PC via infrared (IrDA) |
| Physical Dimensions (H × W × D) |
10.7 × 20.3 × 24.1 cm (4.2 × 8.0 × 9.5 in), excluding handle |
| Weight |
Approx. 2.0 kg (4.5 lb) with CHARGE-PAK and electrodes |
| Environmental |
Operating temperature: 0–50 °C (32–122 °F);
Storage: −40–70 °C (−40–158 °F) with CHARGE-PAK and electrodes (max 1 week at extremes);
Humidity: 5–95% non-condensing; Altitude: 0–15,000 ft; Water resistance: IPX4 “splash proof”;
Shock and vibration tested to MIL-STD-810E. |
| Typical Applications |
Offices, schools, airports, factories, churches, fitness centers, public buildings, and other
public-access AED programs for adult and pediatric sudden cardiac arrest victims. |
