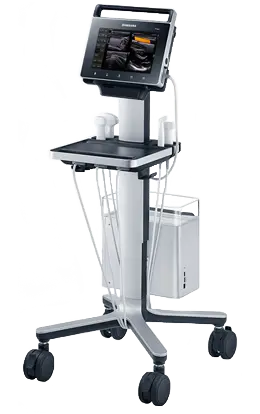

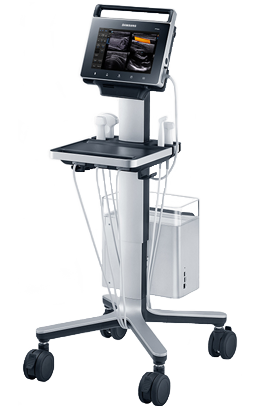

Samsung PT60A

The Samsung PT60A is a compact portable ultrasound system designed for point-of-care applications where mobility, fast setup, and touch-based operation matter. Its slim handheld-style body, integrated handle, and optional docking cart make it suitable for emergency departments, ICU, operating rooms, ambulances, sports medicine, anesthesia, vascular access, and bedside examinations.

Key Features:

• Compact portable design with integrated handle for easier one-handed transportation.
• 10.1-inch LED capacitive touch-screen with multi-touch support and glove-friendly operation.
• ClearVision™ speckle reduction for improved contrast resolution and edge definition.
• MultiVision™ beam steering and scan-line compounding for enhanced spatial and contrast resolution.
• Needle Mate™ for clearer needle visualization during procedures such as nerve blocks.
• QuickScan™ one-touch optimization of important imaging parameters.
• Auto IMT™ semi-automatic measurement of near and far walls of the common carotid artery.

Samsung PT60A Ultrasound System Specifications:

System Type	Compact portable point-of-care diagnostic ultrasound system.
Display	10.1-inch LED capacitive touch-screen monitor.
User Interface	Multi-touch capacitive touch-screen; glove-compatible operation; touch-based access to common functions.
Design	Slim compact body with integrated handle for easier carrying and transport.
Imaging Modes / Capabilities	2D imaging, color Doppler, Doppler imaging, zoom imaging, and application-dependent preset imaging.
Image Processing	ClearVision™ noise reduction; MultiVision™ beam steering and scan-line compounding; QuickScan™ image optimization.
Needle Guidance	Needle Mate™ technology helps delineate needle location during interventional procedures such as nerve blocks.
Vascular Measurement	Auto IMT™ supports semi-automatic intima-media thickness measurement of near and far walls of the common carotid artery.
Transducer Connector	Micro transducer connector designed to save space on the compact system body.
Curved Array Transducers	C2-5: abdomen, obstetrics, gynecology; 47.7° field of view. C2-8: abdomen, obstetrics, gynecology; 68.17° field of view. CF4-9: abdomen, vascular, emergency, pediatric; 92° field of view.
Linear Array Transducers	LN5-12: musculoskeletal, small parts, vascular, anesthesia; 38.1 mm field of view. LS6-15: musculoskeletal, anesthesia; 25.6 mm field of view.
Endocavity Transducer	EVN4-9: obstetrics, gynecology, urology; 148° field of view.
Phased Array Transducers	P4-12: abdomen, cardiac, vascular; 90° field of view. PN2-4: abdomen, cardiac, TCD, emergency; 90° field of view.
Clinical Applications	Point-of-care, emergency, ICU, operating theater, ambulance, sports medicine, anesthesia, vascular, abdomen, OB/GYN, pediatric, cardiac, TCD, musculoskeletal, small parts, and urology applications depending on probe selection.
Mobility Features	Portable compact system body; integrated carrying handle; optional cart for increased mobility and bedside workflow.
