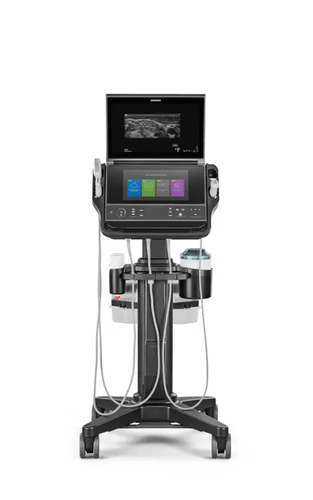

SonoSite PX Ultrasound Machine

Name: SonoSite PX Ultrasound Machine
Brand: Sonosite
SKU: sonosite-px
Price: 16500 USD
Availability: InStock

Vendor: Sonosite

$16,500

Buy Now

Please, enter quantity for at least one product

Quantity unavailable. Try selecting a smaller quantity.

Request A Free Quote

Premium Point-of-Care Ultrasound Clarity with a Workflow Built for Real Life

The Fujifilm SonoSite PX is a high-performance point-of-care ultrasound system designed for clinicians who need fast, confident imaging in diagnostic and procedural settings. Built from extensive clinician input, the PX combines advanced image clarity with a touch + physical-control workflow that stays practical during busy bedside care.

The interface is designed to reduce friction during exams, with streamlined access to common controls and optimized exam presets. On-stand configurations support triple transducer connectivity so frequently used probes can stay connected and ready.

The PX is also built for demanding environments. SonoSite-manufactured transducers are designed for durability, including IPX7 immersion rating and 1 m drop testing.

Key Features:

Touch panel + physical controls, including raised buttons for adjust-by-feel operation.
Streamlined UI for faster access to controls, annotations, and calculations.
Triple Transducer Connect (stand configuration): three transducer ports ready at the touch of a button.
Auto Steep Needle Profiling for improved in-plane needle visualization (supported probes/exams).
Advanced image processing including speckle reduction and multi-beam processing.
Connectivity options including Wi-Fi, Ethernet, digital video out, and USB (configuration dependent).
Security controls designed for clinical network environments.

SonoSite PX Ultrasound System Specifications:

Architecture	Digital broadband; dynamic range up to 183 dB; 256 shades of grayscale
Operating System	Windows 10 IoT Enterprise 2019 LTSC
System Controls	Touch panel and physical buttons
Touch Panel	Projected capacitive (PCAP) touchscreen; 10.0 × 5.7 in (256 × 145 mm)
Clinical Monitor	Monitor size: 15.6 in (396 mm) Display size: 13.5 × 7.6 in (344 × 194 mm) Image size: 8.1 × 6.1 in (207 × 155 mm)
Resolution	Display: 1920 × 1080 px; Image: 1152 × 864 px (minimum)
Transducer Ports	Stand configuration: 3 ports; System only: 1 port
Ingress Protection	System: IP22; Transducers: IPX7
Image Modes	2D broadband imaging; tissue harmonic imaging; pulse inversion harmonic imaging; B-Mode; M-Mode; Color Velocity Doppler (CVD); Color Power Doppler (CPD); Color Variance; PW Doppler (including simultaneous); Tissue Doppler Imaging (TDI); Continuous Wave Doppler (CW)
Image Processing	Speckle reduction; SonoADAPT; SonoMB multi-beam; duplex/triplex; zoom tools
Connectivity	Wi-Fi; Ethernet; 1080p digital video out; USB 2.0/3.0 (configuration dependent)
Stand Footprint	28.3 × 28.3 in (720 × 720 mm)
Height Range	Max: 65.0 in (1650 mm), monitor raised Min: 42.2 in (1072 mm), monitor lowered Adjustment range: 9.8 in (249 mm)
Weight	System + stand: 85.1 lb (38.6 kg); System only: 16 lb 10 oz (7.5 kg)
