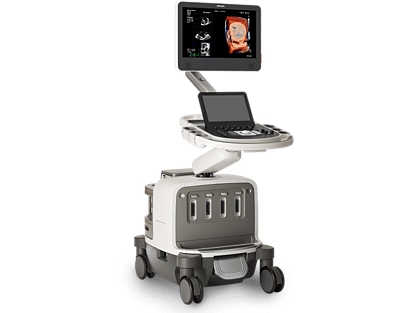

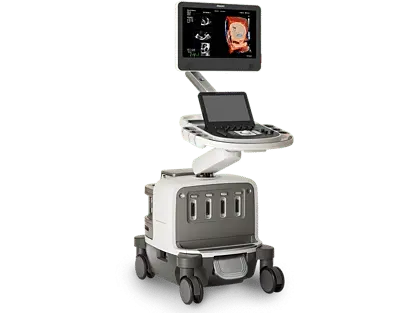

The Philips EPIQ CVx is a cardiovascular ultrasound platform built for diagnostic and interventional echocardiography. It combines Philips nSIGHT imaging with a cardiology-focused interface, advanced transducer options, and tools for reviewing cardiac structure and function. The system is intended for departments that need to move from routine echo studies to more demanding examinations on the same platform.
An OLED display presents ultrasound images with high contrast, while compatible PureWave and xMATRIX transducers support a range of transthoracic and transesophageal examinations. The available software portfolio includes 3D visualization and automated quantification tools. On a pre-owned EPIQ CVx, the installed release, active licenses, and supplied probes determine which of these functions are available.
Key Features
- nSIGHT imaging architecture: digital beam reconstruction and focal processing support image detail, penetration, and uniformity across the field of view.
- Cardiology-focused operation: a configurable touchscreen can place frequently used examination controls where the operator needs them.
- 2D and 3D echocardiography: compatible hardware and probes support adult and pediatric cardiac examinations, including selected transthoracic and transesophageal workflows.
- TrueVue visualization: optional photorealistic 3D rendering uses an adjustable virtual light source to help present complex cardiac anatomy.
- MultiVue tools: available real-time multiplanar alignment and cropping functions help interrogate acquired 3D volumes.
- Automated chamber analysis: Dynamic HeartModel and 3D Auto RV are available on supported releases for cardiac chamber measurements and functional assessment.
- Strain analysis options: supported TOMTEC AutoStrain applications provide automated longitudinal strain measurements; the required licenses must be confirmed.
- Mobile study workflow: an adjustable cart, fold-down monitor, cable management, and available wireless DICOM support movement between clinical areas.
Clinical Applications
With the appropriate transducers and software, EPIQ CVx supports adult and pediatric echocardiography, assessment of ventricular and atrial function, valve imaging, and suitable TEE examinations. Advanced 3D tools can help present valve and structural anatomy during diagnostic review or procedural assessment. The clinical application must match the system's cleared functions, installed release, and compatible probe.
Philips EPIQ CVx Specifications
| System type | Cart-based cardiovascular ultrasound platform |
|---|
| Imaging architecture | Philips nSIGHT imaging |
|---|
| Display | OLED main monitor; size and hardware revision should be confirmed |
|---|
| System width | 60.6 cm (approximately 23.9 in) |
|---|
| System depth | 109.2 cm (approximately 43 in) |
|---|
| System height | 146–171.5 cm (approximately 57.5–67.5 in), depending on adjustment |
|---|
| System weight | Approximately 104.3 kg (230 lb); configuration affects final weight |
|---|
| Control panel | Touchscreen interface; approximately 25.4 cm height adjustment and 180° movement |
|---|
| Transducer technologies | Compatible PureWave and xMATRIX transducers; supplied probes vary |
|---|
| 3D visualization options | TrueVue, MultiVue, and other tools according to software release/license |
|---|
| Cardiac quantification options | Dynamic HeartModel, 3D Auto RV, and TOMTEC AutoStrain on supported configurations |
|---|
| Connectivity | DICOM/PACS integration; wireless functions depend on installed options |
|---|
Confirming the Offered Configuration
Ask Absolute Medical for the exact software release, active quantification licenses, and included transducers. In particular, confirm the required TTE or TEE probe and any 3D, strain, or valve-analysis package before ordering. Philips has expanded the EPIQ CVx platform over multiple releases; features advertised for later systems are not automatically installed on an earlier unit.
For an accurate comparison, request a quotation that identifies the system condition, included accessories, warranty terms, and delivery arrangements. If you plan to integrate the scanner with an existing PACS or echo reporting environment, provide those requirements when discussing the configuration. The manufacturer brochure below describes the platform and optional capabilities; the final quotation establishes what is included with the individual system.
