xMatrix TEE Transducer with PureWave Crystal Technology

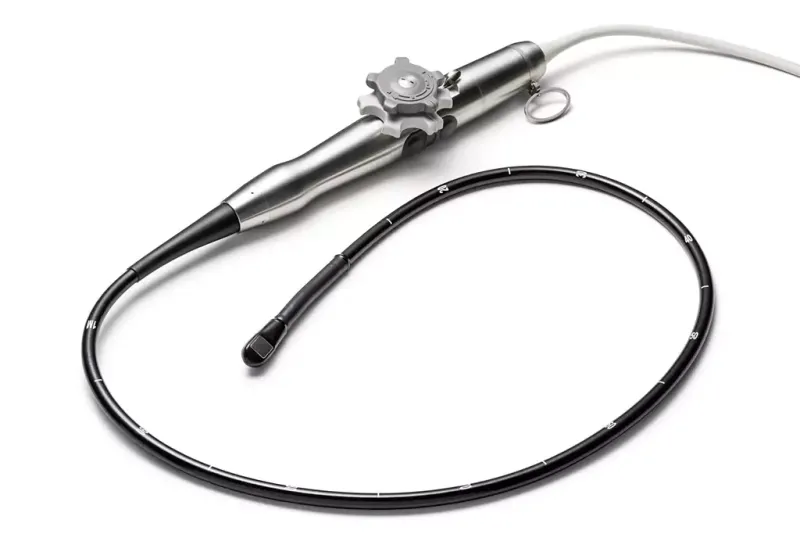

The Philips X8-2t Transducer is an advanced xMatrix sector array transesophageal echocardiography (TEE) probe designed to deliver exceptional 2D and 3D cardiac imaging performance.
Incorporating PureWave crystal technology and xMatrix architecture,
it operates across an 8 to 2 MHz frequency range to provide outstanding resolution, penetration, and real-time volumetric imaging capabilities for comprehensive cardiac assessment.
The X8-2t supports a full suite of imaging modes including
2D, Live xPlane, Live 3D,
3D Zoom, Full Volume, and 3D Color modes.

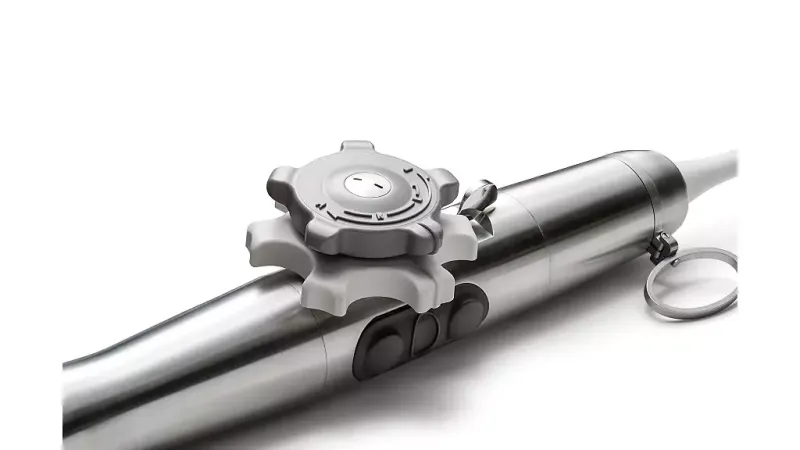

Its user-configurable control button on the probe handle enhances workflow efficiency during exams,
while the included ECG interface cable and disposable tip protector provide added convenience and patient safety.
With its wide volumetric field of view (105° × 105°) and refined beamforming precision,
the X8-2t enables highly accurate visualization of cardiac anatomy and hemodynamics for diagnostic and interventional procedures.
This pre-owned unit offers the same trusted Philips image quality and clinical performance
at a significantly lower cost, making it an excellent choice for hospitals and cardiology centers
seeking to expand their 3D TEE imaging capabilities while maintaining cost efficiency.
| Technology |
PureWave and xMatrix |
| Number of Elements |
2,500 |
| Frequency Range |
8 – 2 MHz |
| Array Type |
PureWave and xMatrix |
| Aperture |
Proprietary |
| Field of View |
90° |
| Volume of Field of View |
105° × 105° |
| Applications |
Adult TEE imaging |
| Biopsy Capable |
No |
| Image Fusion Navigation Capable |
Yes |
