Premium Point-of-Care Ultrasound With an Expansive, Rotating Touchscreen

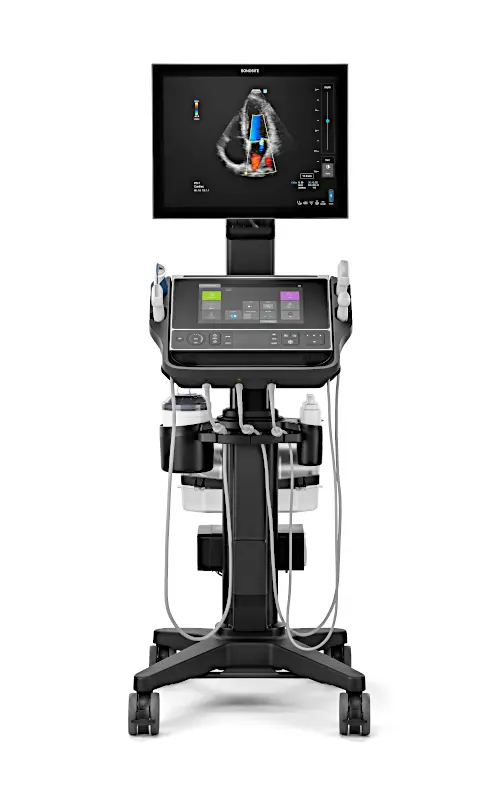

The FUJIFILM SonoSite LX is a premium point-of-care ultrasound system designed to improve
bedside access, collaboration, and workflow in busy clinical environments. It delivers a
“heads-up” experience centered around an expansive touchscreen display that can
rotate and extend to support shared viewing during procedures and exams.
Built for real-world hospital movement, the LX pairs a small footprint with
adjustable height and a vertically adjustable control panel for optimized bedside positioning,
even in crowded rooms. The display rotates, tilts, and extends so clinicians can maintain visibility
without constantly rearranging equipment.
The system supports modern workflow and connectivity features, including Wi-Fi,
Ethernet, 1080p digital video output, and multiple USB ports. It also supports
triple transducer connections so commonly used probes can remain connected and ready.
Key Features:
- Expansive touchscreen designed for a heads-up workflow and fast access to controls.
- Adaptable display positioning: rotates, tilts, and extends for easier viewing and collaboration.
- Optimized bedside access with adjustable height and a vertically adjustable control panel.
- Triple transducer ports to keep commonly used probes connected and ready.
- Connectivity: Wi-Fi, Ethernet, 1080p video out, USB 2.0/3.0 (configuration dependent).
- Durability: IPX7 immersion-rated and drop-tested to 1 m (3.3 ft).
- Onboard education with scan-along tutorials to support training and consistency.
- Security features designed to support clinical network environments.
- Workflow options such as ECG module, barcode scanner, and optional cordless charging (configuration dependent).
SonoSite LX Ultrasound System Specifications:
| System Type |
Premium point-of-care ultrasound system with heads-up workflow design |
| Display & Positioning |
Expansive touchscreen display that rotates, tilts, and extends for collaboration and easier viewing |
| Ergonomics |
Adjustable height with a vertically adjustable control panel for bedside positioning |
| Footprint |
Small-footprint cart designed for use in crowded clinical environments |
| Transducer Connectivity |
Triple transducer ports (stand configuration) for rapid access to commonly used probes |
| Data & Connectivity |
Wi-Fi, Ethernet, 1080p digital video output; USB ports (USB 2.0/3.0, configuration dependent) |
| Durability |
IPX7 immersion-rated (up to 30 minutes at 1 m / 3.3 ft) and drop-tested to 1 m (3.3 ft) |
| Transducer Options |
C5-1, C10-3, P5-1, P11-3, L12-3, L13-6, L15-4, L19-5, IC10-3, T8-3 (availability varies) |
| Education |
Onboard scan-along tutorials (quantity and content vary by configuration) |
| Security |
Security features designed to support patient data protection and clinical networks |
| Typical Clinical Use |
Anesthesia, critical care, emergency medicine, musculoskeletal, and procedural guidance |
