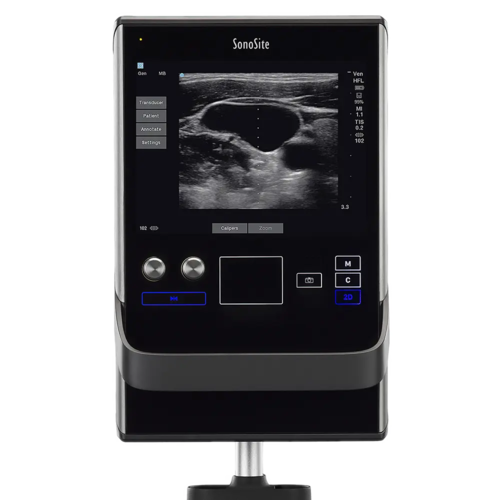

SonoSite SII Ultrasound Machine

The Fujifilm SonoSite SII is a compact, point-of-care ultrasound system engineered for rapid diagnosis in crowded emergency and procedural environments. Its intuitive, adaptive touchscreen puts clinician-driven presets front and center, while DirectClear™ transducer technology boosts penetration and contrast to deliver clear, confident images at the bedside. Dual embedded transducer connectors let you switch exam types in seconds, and the small footprint stand and optional wall/arm mounting keep hallways and bays clear without sacrificing storage.

Built for real-world abuse, the SII supports armored transducer cables on key probes and reintroduces essential tactile controls for depth and gain so you can work by feel when time is tight. The sealed, full-glass front is easy to disinfect, and interface lockout prevents accidental inputs during cleaning. From regional anesthesia and vascular access to trauma and perioperative assessments, the SII delivers dependable performance with fast boot and streamlined workflow.

Key Features:

• Intuitive, adaptive touchscreen with clinician-driven menu and familiar tactile knobs for gain/depth.
• DirectClear™ transducer technology for improved penetration and contrast resolution.
• Dual embedded transducer ports to toggle probes and exam types with two taps.
• Fast start-up from cold to scan in < 25 seconds.
• Small footprint system and redesigned stand with added storage; zero-footprint wall/arm mounting option.
• Armored transducer cables (select probes) to protect signal integrity in high-traffic areas.
• Easy infection control: sealed, disinfectable glass screen with touch lockout during cleaning.
• Designed for Anesthesia, Vascular Access, Trauma/ER, MSK, and procedural guidance.

SonoSite SII Ultrasound System Specifications:

Ultrasound transducers available:

• L25x (Linear)
  Applications: Arterial, lung, musculoskeletal (MSK), nerve, ophthalmic, venous
  Frequency / Bandwidth: 13–6 MHz
  Maximum scan depth: 6 cm
• L38x (Broadband Linear Array)
  Frequency range: 10–5 MHz
  Maximum scan depth: 9 cm
  Aperture / array length: 38 mm
  Imaging capabilities / applications: Vascular, MSK, small parts
• HFL38x (High-Frequency Linear)
  Frequency range: 13–6 MHz
  Maximum scan depth: 6 cm
  Applications: MSK, nerve, superficial/small parts, vascular
• HFL50x (High-Frequency Linear)
  Applications: Breast, MSK, nerve
  Frequency / Bandwidth: 15–6 MHz
  Maximum scan depth: 6 cm

• C60xi (Curved Array)
  Applications: Abdominal, gynecology, MSK, nerve, obstetrics
  Frequency / Bandwidth: 5–2 MHz
  Maximum scan depth: 30 cm
