SonoSite X-Porte Ultrasound System

Vendor: Sonosite

Call 888-267-2966 for Pricing

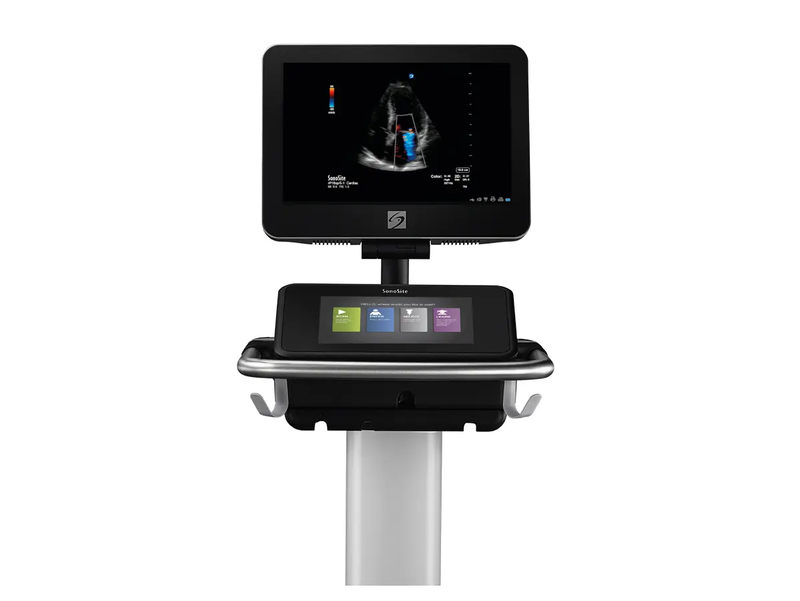

The Fujifilm SonoSite X-Porte is an all-in-one ultrasound kiosk designed to bring imaging, workflow tools, and onboard education together in a single, mobile platform. Its interface is built around a capacitive touchscreen with multi-touch gesture controls, and the sealed design leaves no physical buttons for contaminants to hide behind, making navigation fast and cleaning straightforward.

Built on an all-digital broadband architecture with a wide dynamic range and advanced image processing (including XDI, SonoADAPT™, SonoHD2™, and SonoMB multibeam technology), X-Porte supports a broad set of clinical applications from acute care and vascular to MSK, OB/GYN, and cardiac. A large HD monitor, flexible tilting and rotation adjustments, and integrated measurement and reporting tools help clinicians capture and document studies efficiently at the point of care.

Key Features:

All-in-one kiosk design that integrates imaging, workflow features, and onboard education resources.
Sealed capacitive touchscreen with multi-touch gestures for system control and easy infection control.
Large HD monitor: 19-inch diagonal minimum with wide tilt range.
Advanced imaging modes: 2D, THI, pulse inversion harmonic, M-Mode, Color Doppler, Power Doppler, PW, CW (with ECG), and tissue Doppler.
Image enhancement suite: Extreme Definition Imaging (XDI), SonoADAPT™, SonoHD2™, SonoMB multibeam, AutoGain, duplex/dual imaging, and up to 8× zoom.
Steep Needle Profiling supported on multiple transducers/exams for procedural guidance.
Onboard storage and review: 64GB internal flash (approximately 28,500 images), cine review, prospective/retrospective clip store, and auto-export options.
Connectivity: multiple USB ports, Ethernet, ECG connector, wireless 802.11 (2.4/5 GHz), and DICOM image management features.
Onboard education: Visual Guide tutorials (Imaging Basics plus application packages) and help system.

SonoSite X-Porte Ultrasound System Specifications:

System Type	Mobile ultrasound kiosk with integrated touchscreen control panel and HD monitor.
Stand Dimensions (L × W)	26.4 in × 21.2 in (67.1 cm × 53.9 cm).
Stand Height	Max: 65 in (162.6 cm, monitor up) Min: 42.2 in (107.2 cm, monitor down) Height adjustment travel: 9 in (22.9 cm)
Control Panel	12.1-inch capacitive touchscreen; tilt adjustment 0° to 110°; multi-touch gestures for system control.
Rotation / Tilt	Side-to-side turning: ± 90° from center Monitor tilt: 110° (5° forward, 20° back from vertical)
Casters	5-inch swivel casters; 4 locking.
Monitor	HD monitor: 19-inch diagonal minimum; screen resolution minimum 1680 × 1050 (16:10).
Display / Panel Resolutions	Image size: 800 × 600 Control panel resolution: 1280 × 800
Architecture	All-digital broadband; dynamic range up to 183 dB; 256 shades of gray.
Imaging Modes	2D, Tissue Harmonic Imaging, Pulse Inversion Harmonic Imaging, M-Mode, Velocity Color Doppler, Color Power Doppler, PW Doppler, PW Tissue Doppler, CW Doppler (with ECG).
Image Processing	XDI, SonoADAPT™, SonoHD2™, SonoMB, AutoGain, duplex/dual imaging, up to 8× zoom, post-processing for dynamic range and zoom, color/doppler flow optimization.
Measurements & Packages	Comprehensive measurement sets for 2D, Doppler, and M-Mode; application packages include OB/GYN, vascular, MSK/small parts, TCD, cardiac, and acute care worksheets and calculations.
Storage / Review	Internal flash: 64 GB (approximately 28,500 images); cine review (2D up to 20 seconds; PW/CW/M-mode up to 16 seconds); prospective/retrospective clip store; export formats include JPEG, AVI, BMP; DVR format MP4; export format HTML.
Data Management & Connectivity	USB ports, Ethernet, DVR USB port, ECG connector; IPv6 support; barcode auto query; DICOM (Print/Store, Worklist, PPS, Storage Commitment); wireless 802.11 (2.4/5 GHz) with multiple security policies.
Power	AC or battery operation; input 100–240 VAC, 50–60 Hz; output 24 VDC (275 W max) plus AC printer output; rechargeable lithium-ion battery 385 Wh; battery life approximately 1 hour (up to 3 days on idle); charges to 80% in 3 hours.
Onboard Education	Visual Guide Education tutorials onboard (Imaging Basics and sample videos) plus application packages (Acute Care, Procedures, Anaesthesiology, MSK).
