Live 3D TEE xMatrix Array with PureWave Crystal Technology

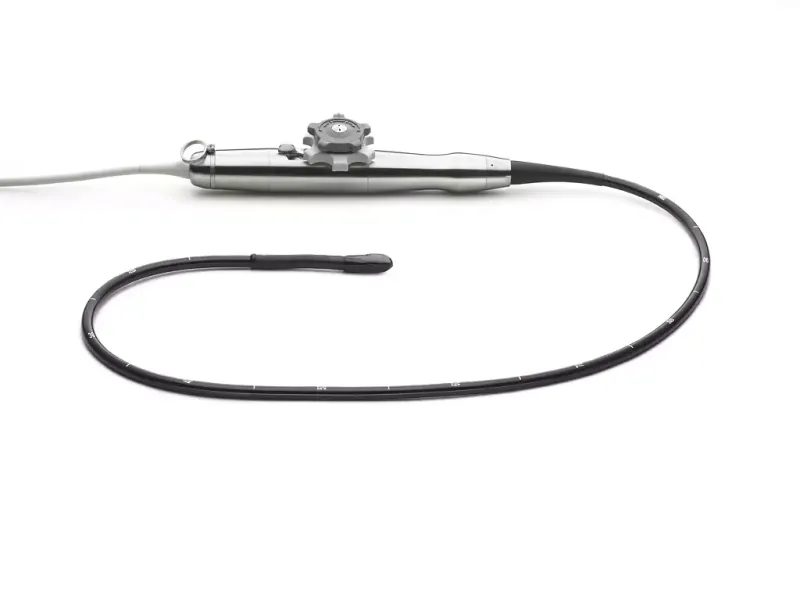

The Philips X7-2t Transducer (xMATRIX) is an advanced
sector array transesophageal echocardiography (TEE) probe that integrates
PureWave crystal technology with xMatrix imaging to provide exceptional
cardiac visualization in both 2D and 3D modes. Operating across a 7 to 2 MHz
frequency range, it supports 2D, Live xPlane, Live 3D,
3D Zoom, Full Volume, and 3D color imaging.
This combination of precision transducer engineering and advanced beamforming technology ensures
outstanding image resolution and diagnostic detail, even in technically challenging patients.
The X7-2t features a user-configurable control button conveniently located on the handle
to streamline workflow and exam efficiency. Each unit includes an ECG interface cable
and a disposable tip protector for added safety and hygiene during procedures.
Designed for adult TEE applications, this transducer is widely recognized for
its reliability, ergonomic design, and versatility in cardiology imaging environments.
This pre-owned unit delivers the same trusted Philips performance and imaging versatility
at a significantly lower cost, making it an excellent choice for clinics and hospitals
looking to expand their 3D echocardiography capabilities while maintaining budget efficiency.
| Technology |
PureWave and xMatrix |
| Number of Elements |
2,500 |
| Frequency Range |
7 – 2 MHz |
| Array Type |
PureWave and xMatrix |
| Aperture |
Proprietary |
| Field of View |
90° |
| Volume of Field of View |
98° × 98° |
| Applications |
Adult TEE applications |
| Biopsy Capable |
No |
| Image Fusion Navigation Capable |
No |
