xMatrix Sector Array with PureWave Crystal Technology

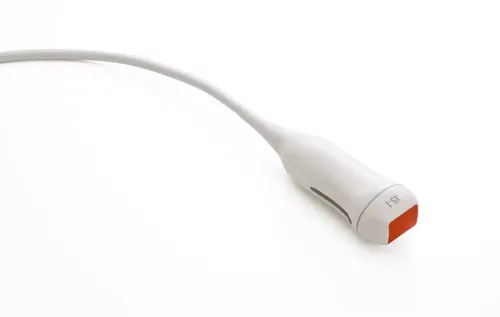

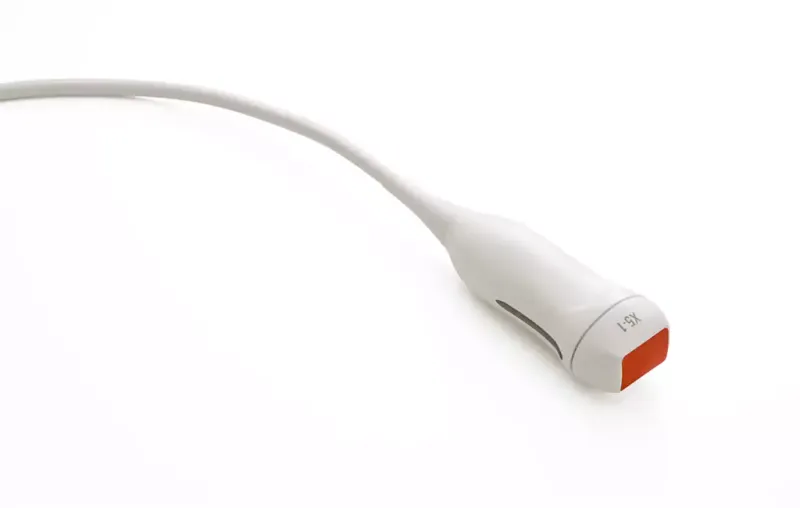

The Philips X5-1 Transducer (xMATRIX) combines advanced xMatrix array technology
with PureWave crystal technology to deliver outstanding image clarity and performance for
adult and pediatric echocardiography. Operating across an extended 5 to 1 MHz
frequency range, this highly versatile probe supports a comprehensive range of imaging modes including
2D, Live 3D Volume, High Volume Rate (HVR),
one-beat, two-beat, and four-beat Live Volume, color flow,
Live 3D color, PW/CW Doppler, M-mode,
color M-mode, contrast imaging, Tissue Doppler,
and Live xPlane imaging.
With 3,040 micro-beamformed elements and iRotate electronic rotation
(0–180°), the X5-1 removes barriers to 3D imaging and allows clinicians to seamlessly switch between

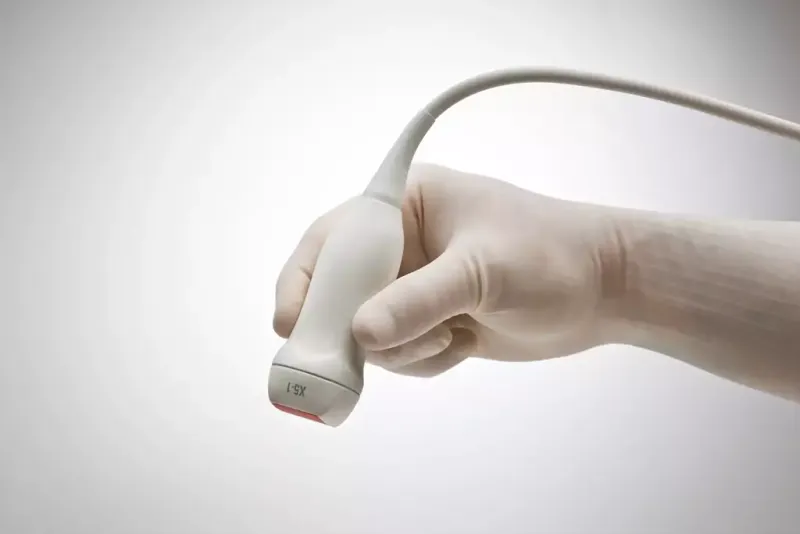

2D, 3D, or combined modes without disrupting workflow. Its ergonomic design and solid-state reliability
eliminate the need for complex liquid cooling systems, minimizing user fatigue while ensuring consistent
high-quality imaging. Measuring 9.2 × 3.9 × 2.9 cm
(3.6 × 1.5 × 1.1 in), this compact probe is Philips Green Label approved
for sustainability and energy efficiency.
This pre-owned unit delivers the same trusted Philips performance and versatility
at a significantly lower cost, making it an excellent choice for clinics and hospitals
seeking to expand their 3D echocardiography capabilities while maintaining budget control.
| Technology |
PureWave and xMatrix |
| Number of Elements |
3,040 |
| Frequency Range |
5 – 1 MHz |
| Array Type |
PureWave and xMatrix |
| Aperture |
Proprietary |
| Field of View |
90° |
| Volume of Field of View |
98° × 98° |
| Applications |
Adult/Pediatric Cardiac, Abdominal Vascular, TCD |
| Biopsy Capable |
No |
| Image Fusion Navigation Capable |
No |
