| System Type |

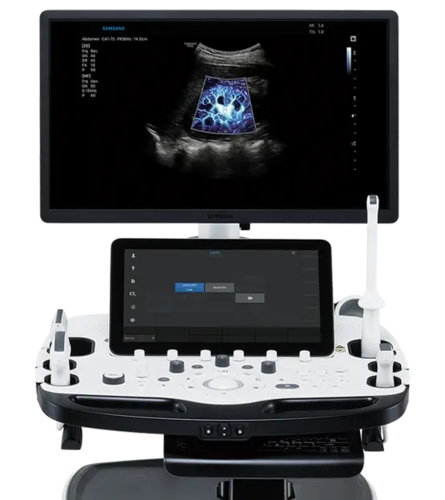

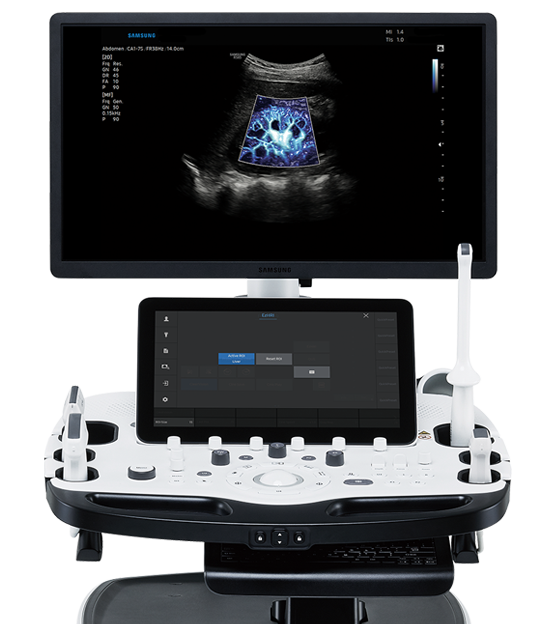

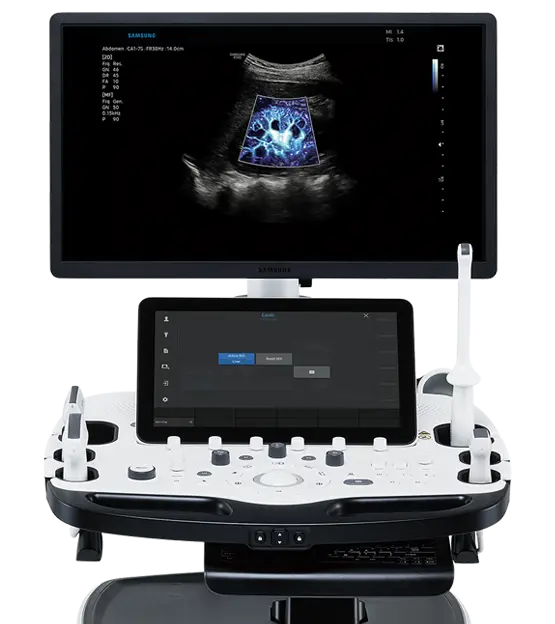

Premium cart-based general imaging ultrasound system. |
| Clinical Applications |
Abdominal, breast, cardiac, gynecology, MSK, neonatal, obstetrics, pediatrics, small parts, TCD, urology, and vascular. |
| Dimensions |
Height: 55–67 in
Width: 22 in
Depth: 38.5 in |
| Weight |
290 lb. |
| Main Display |
23.8-inch wide color LCD flat display; 1920 × 1080 resolution; IPS technology. |
| Touchscreen |
14-inch LED capacitive tilting touch panel; 1920 × 800 resolution. |
| Image Storage |
Integrated 512 GB SSD; optional additional 512 GB SSD. |
| Depth Range |
2–45 cm, depending on probe and preset. |
| Probe Ports |
4 active probe ports + 1 storage port; optional pencil probe port. |
| Imaging Modes |
2D, Color Doppler, Power Doppler, S-Flow™, PW Doppler, CW Doppler, M-Mode, Color M-Mode, Anatomical M-Mode, Harmonic Imaging, S-Harmonic™, TDI, and TDW. |
| Standard Imaging Features |
Advanced QuickScan™, QuickScan™ Live, Color Auto Gain, ClearVision, MultiVision, PureVision™, HQ-Vision™, AutoIMT™, Elastoscan+™, EZ Exam+™, NeedleMate+™, ShadowHDR™, cardiac measurements, post-processing, DICOM, physical keyboard, and gel warmer. |
| Advanced / Optional Features |
2D NT, ADV™, ArterialAnalysis™, BiometryAssist™, CEUS+, CrystalVue™, E-Breast™, E-Thyroid™, EzHRI™, EzNerveMeasure™, HDVI™, IOTA-ADNEX, LumiFlow™, MV-Flow™, NaturalVue™, NerveTrack™, Panoramic+, QUS, RealisticVue™, S-Detect™, S-Fusion™, S-Shearwave Imaging™, Smart 4D, SonoSync™, XI STIC, Strain+, StressEcho, and Mobile Export. |
| Data Management / DICOM |
DICOM 3.0 compatible; Verification Service, Worklist, Query/Retrieve, Image Storage, MPPS, SR, PPS, SC, and Print. |
| Connectivity |
1000BASE-T Gigabit Ethernet, HDMI, VGA, and S-Video outputs. |
| Cybersecurity |
Windows 10, user management, Windows Defender antivirus, EMR/DICOM secure transmission with DICOM TLS, secure erase for PHI data, SSD encryption with BitLocker, and audit trails. |
| Ergonomics |
Articulating monitor arm with ±360° swivel; height, tilt, and swivel monitor adjustment; virtual TGC on touch panel; digital TGC line memory; trackball and grouped hard keys with interactive backlighting; integrated stereo speakers. |
| Supported Transducer Categories |
Convex array, linear array, phased array, volume, endocavity, continuous wave, and TEE transducers. |
| Example Transducers |
CA1-7A, CA1-7S, CA3-10A, CA4-10M, LA2-14A, LA2-9S, L3-22, LA4-18A, L3-12A, LM2-18, LA3-22AI, PA1-5A, PA3-8B, PA4-12B, CV1-8A, EV2-10A, EA2-11AR, EA2-11AV, miniER7, CW6.0, DP2B, and MMPT3-7. |
| Power |
100–240 V AC, 50/60 Hz, 1,000 VA. |
| Battery Option |
Standby time approximately 65 minutes; scan time approximately 45 minutes minimum; charging time approximately 6 hours maximum. |
