Compact, Reliable Defibrillation and Monitoring in One Portable System

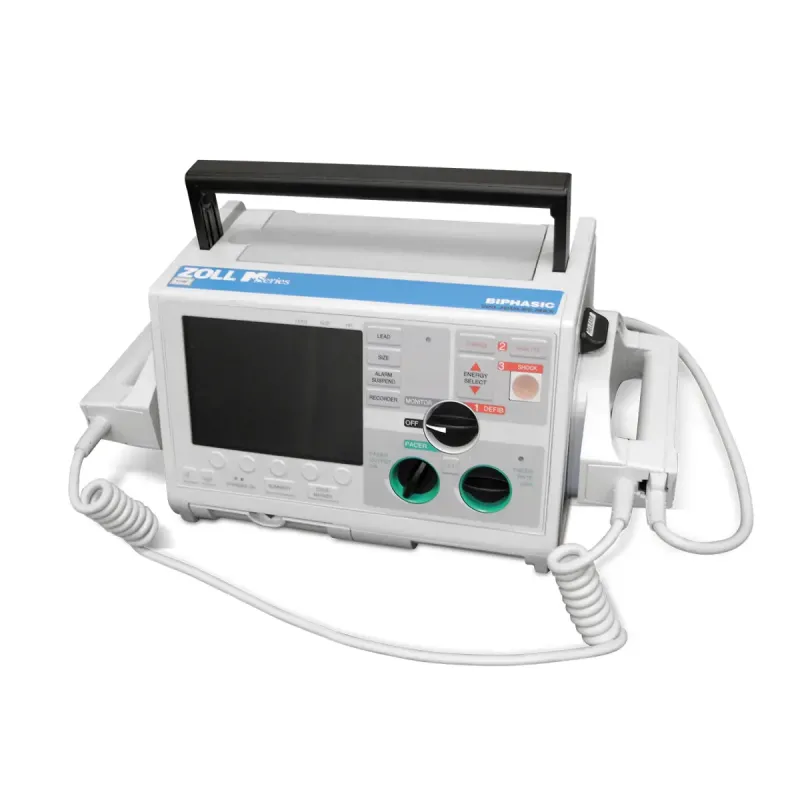

The Zoll M Series Bi-Phasic Defibrillator is a compact, lightweight, and reliable
monitor/defibrillator designed for both hospital and EMS environments.
Combining advanced defibrillation, pacing, and monitoring functions, the M Series ensures dependable performance
in emergency and transport settings. Built with ZOLL’s Rectilinear Biphasic™ waveform technology,
it delivers effective defibrillation across a wide range of patient impedances while minimizing post-shock myocardial damage.
Featuring simple, intuitive controls and a common connector for paddles and pads,
the M Series enables rapid deployment and operation when seconds matter. An internal AC power supply and charger
automatically recharge the battery when plugged in, ensuring readiness for every case. The integrated
three-channel recorder provides immediate documentation of ECG waveforms, code summaries, and treatment data.
A high-contrast field emission display (FED) provides exceptional visibility
at any angle—even in bright light or low visibility conditions—enhancing accuracy during critical procedures.
This pre-owned unit offers the same dependable ZOLL performance at a
significantly lower cost, making it a smart choice for hospitals, emergency departments,
and EMS organizations seeking a proven, field-tested defibrillator.
Key Features:
- Rectilinear Biphasic™ waveform provides consistent and effective defibrillation.
- Common connector for paddles and pads eliminates delays and confusion.
- Built-in AC power and charger automatically recharge the internal battery.
- Integrated 3-channel recorder documents ECG, defibrillation, and patient data.
- High-contrast FED display for excellent visibility at wide viewing angles.
- Supports manual and AED modes with programmable energy and analysis options.
- Fully compatible with ZOLL Multi-Function Electrodes (MFE) for adult and pediatric use.
Zoll M Series Defibrillator Specifications:
| Waveform |
Damped Sinusoid or Rectilinear Biphasic™ |
| Energy Selection |
1 – 360 Joules (Rectilinear Biphasic up to 200 J) |
| Charge Time |
Less than 7 seconds with fully charged battery |
| Pacing |
VVI demand or asynchronous; 30–180 BPM; 0–140 mA, constant current |
| ECG Monitoring |
3-, 5-, or 12-lead ECG; Heart rate 30–300 bpm; ±5% accuracy |
| Display |
5.66" (14.4 cm) high-resolution FED/LCD; 25 or 50 mm/sec sweep speed |
| Recorder |
3-channel thermal recorder, 80 mm paper, manual or automatic modes |
| Battery (PD 4410) |
Rechargeable sealed lead-acid; 35 discharges at 360 J or 2.75 hrs monitoring |
| Battery (XL) |
Rechargeable sealed lead-acid; 60 discharges at 360 J or 4 hrs monitoring |
| Power Input |
AC: 100–120 V / 220–240 V, 50/60 Hz, 220 VA; DC optional: 10–29 V, 130 W |
| Dimensions (H × W × D) |
6.8 × 10.3 × 8.2 in (17.3 × 26.2 × 20.8 cm) |
| Weight |
13.5 lb (6.14 kg) |
| Operating Temperature |
32°F to 131°F (0°C to 55°C) |
| Storage Temperature |
–40°F to 149°F (–40°C to 65°C) |
| Applications |
Hospital and EMS use; adult and pediatric defibrillation, pacing, and monitoring |
