All the Advantages of a Propaq Monitor with a Defibrillator

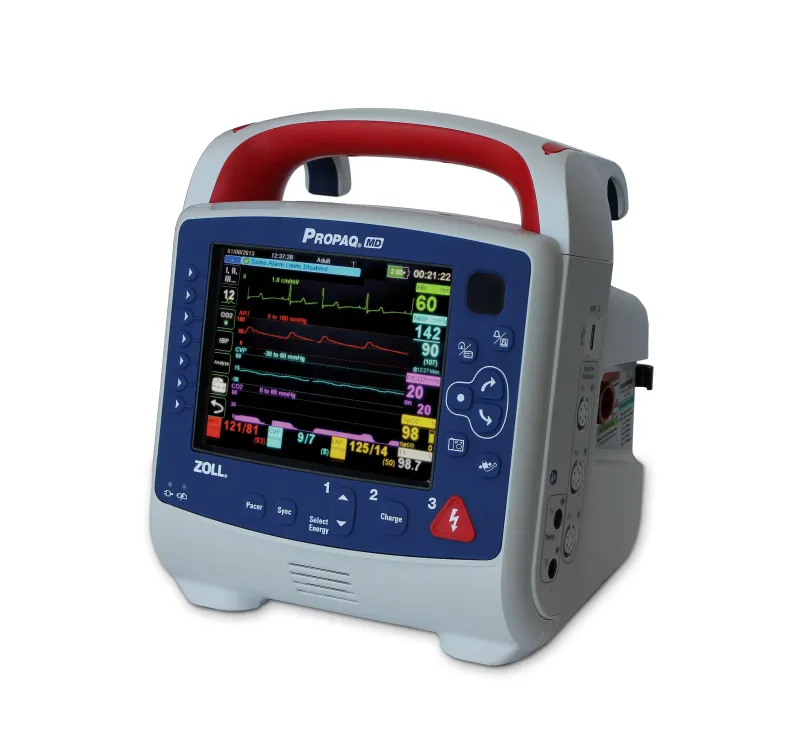

The Zoll Propaq® MD Defibrillator is the smallest, lightest, and most advanced
monitor/defibrillator in its class, specifically engineered to meet the demanding requirements of
military and air medical operations. Combining the proven Propaq® monitoring platform with
ZOLL’s rectilinear biphasic defibrillation and non-invasive pacing technologies,
it delivers the full functionality of a critical-care defibrillator at half the size and weight of
comparable systems.
Built for the rigors of field and aeromedical environments, the Propaq MD incorporates
Real CPR Help® for real-time compression feedback and See-Thru CPR® for rhythm
assessment during chest compressions. Its CPR Dashboard™ provides numeric feedback on depth, rate,
and release, while RapidShock® technology helps reduce pre-shock pauses. The bright, NVG-friendly
color display ensures visibility in both bright daylight and night operations.
The device integrates three invasive pressure channels, two temperature channels,
Masimo Rainbow® SET SpO₂, SpCO, SpMet, SpHb, and SpOC monitoring, as well as
Microstream® EtCO₂ and Smartcuf® / SureBP® NIBP technology. With its robust
IP55 ingress-protection rating, MIL-STD-810G shock resistance, and SurePower™ II battery system,
the Propaq MD is optimized for long-duration transport missions and critical-care
resuscitation.
This pre-owned unit provides the same dependable ZOLL technology and performance at a
significantly lower cost, making it ideal for military, medevac, and emergency medical organizations
seeking a reliable, mission-ready defibrillator.
Key Features:
- Combines Propaq® monitoring with advanced ZOLL defibrillation and pacing in a compact, rugged design.
- Up to 60% smaller and 40% lighter than comparable monitor/defibrillators.
- Built to meet MIL-STD-810G and airworthiness certifications for field and transport use.
- IP55-rated for dust and water-jet resistance.
- Supports 12-lead ECG, EtCO₂, SpO₂, NIBP, and invasive pressure monitoring.
- Real CPR Help®, See-Thru CPR®, RapidShock®, and CPR Dashboard™ feedback systems.
- Night Vision Goggle (NVG)–friendly display modes for tactical operations.
- SurePower™ II battery: 6 hours of monitoring with all parameters active and 10 × 200 J shocks.
Zoll Propaq MD Defibrillator Specifications:
| Defibrillator Waveform |
Rectilinear Biphasic™ |
| Energy Selections |
1 – 200 J (1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 15, 20, 30, 50, 70, 85, 100, 120, 150, 200 J) |
| Charge Time |
< 7 seconds to 200 J (typical) |
| CPR Feedback |
Real CPR Help®, See-Thru CPR®, CPR Dashboard™ with depth/rate display |
| Pacing |
External transcutaneous pacing (30 – 180 BPM, 0 – 140 mA, Demand and Fixed modes) |
| Display |
Bright color LCD TFT (640×480 pixels), adjustable brightness, NVG-friendly modes |
| ECG |
3-, 5-, 12-lead input; auto detection; bandwidth 0.05 – 150 Hz; heart rate 30 – 300 BPM |
| SpO₂ (Masimo Rainbow® SET) |
SpO₂ 1 – 100%; SpCO 0 – 99%; SpMet 0 – 99%; SpHb 0 – 25 g/dL; SpOC 0 – 35 mL O₂/dL |
| NIBP (Smartcuf® / SureBP®) |
Automatic and manual intervals (1 – 60 min); Adult 20 – 260 mmHg; Pediatric 10 – 220 mmHg |
| EtCO₂ (Microstream®) |
Range 0 – 150 mmHg; Accuracy ± 2 mmHg (0–38), ± 5% above 38 mmHg |
| Invasive Pressure Channels |
3 channels; –30 to 300 mmHg; ± 2 mmHg accuracy |
| Temperature Channels |
2 channels (YSI 400/700 compatible); Range 0 – 50 °C; Accuracy ± 0.1 °C |
| Battery |
Rechargeable SurePower™ II Li-ion; 6 hours operation with full monitoring and 10 × 200 J shocks |
| Dimensions (H × W × D) |
8.9 × 10.4 × 7.9 in (22.6 × 26.4 × 20.1 cm) |
| Weight |
10.6 lb (4.8 kg) without battery; 11.7 lb (5.3 kg) with battery and paper |
| Protection Rating |
IP55 (dust and water-jet resistant) |
| Operating Environment |
0 – 50 °C; 15 – 95% RH; Altitude to 15,000 ft; Shock 100 g/6 ms half-sine; Drop 1 m MIL-STD-810G |
