Advanced Defibrillation and Real-Time CPR Feedback

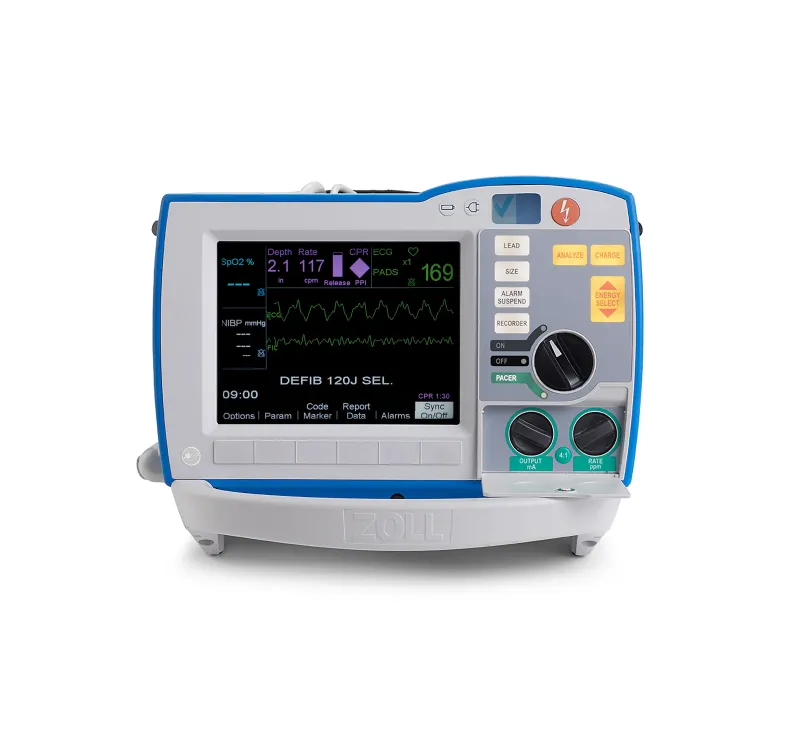

The Zoll R Series Defibrillator is a hospital-grade monitor/defibrillator engineered
to enhance resuscitation success rates with its intelligent Real CPR Help® and
See-Thru CPR® technologies. Designed for both acute and non-acute care settings,
it provides optimal defibrillation and pacing performance while simplifying operation
through an intuitive interface and streamlined OneStep™ electrode system.
The R Series features Real CPR Help® technology, providing real-time audio and visual feedback on the quality of chest compressions. This ensures the correct rate,
depth, and release for high-quality CPR in every rescue. The patented See-Thru CPR®
technology minimizes interruptions by filtering out CPR artifact, allowing clinicians to assess cardiac rhythm
without stopping compressions.
With OneStep™ electrodes, the R Series allows caregivers to monitor, defibrillate, and pace
without switching cables, improving response time during critical moments. Pediatric OneStep electrodes
automatically reduce energy to 50 joules, safeguarding younger patients during therapy.
Designed for hospital professionals and trained rescuers, it delivers ZOLL’s proven reliability,
ergonomic design, and consistent performance across clinical environments.
This pre-owned unit provides the same trusted ZOLL technology and reliability at a
significantly lower cost, making it an ideal choice for hospitals, emergency departments,
and transport teams seeking dependable, life-saving defibrillation and monitoring capability.
Key Features:
- Real CPR Help® technology provides real-time feedback on compression rate and depth.
- See-Thru CPR® allows rhythm assessment without interrupting chest compressions.
- OneStep™ electrodes enable monitoring, pacing, and defibrillation with a single connection.
- Pediatric OneStep™ pads automatically reduce defibrillation energy to 50 joules.
- High-contrast color display for easy waveform and parameter visualization.
- Lightweight and portable with integrated battery and rapid charge time.
- Ideal for hospital crash carts, CCUs, ICUs, and procedural areas.
Zoll R Series Defibrillator Specifications:
| Technology |
Real CPR Help® and See-Thru CPR® with OneStep™ electrode system |
| Functions |
Defibrillation, pacing, and patient monitoring |
| Energy Output |
1 – 200 Joules |
| Charge Time |
Less than 7 seconds (with new battery) |
| Battery Capacity |
5.8 amp hours (ZOLL XL rechargeable battery) |
| Dimensions (H × W × D) |
8.2 × 10.5 × 12.5 in (20.8 × 26.7 × 31.7 cm) |
| Weight |
13.6 lb (6.2 kg) |
| Applications |
Designed for hospital professionals and trained rescuers in acute and non-acute care settings;
adult and pediatric defibrillation and pacing. |
| Display Features |
High-contrast color display with waveform and CPR feedback indicators |
