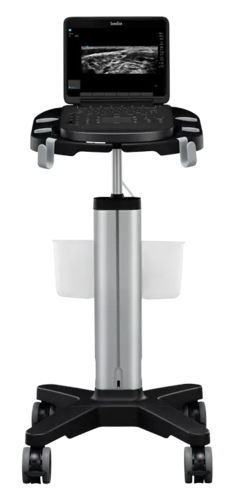

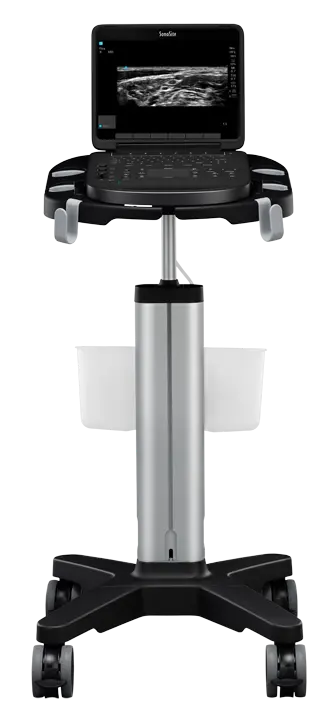

SonoSite Edge II Ultrasound Machine

Vendor: Sonosite

Call 888-267-2966 for Pricing

The Fujifilm SonoSite Edge II is a rugged, point-of-care ultrasound system built for high-stakes scanning where gear gets bumped, rolled, and cleaned constantly. It pairs an all-digital broadband architecture with image optimization tools (including SonoADAPT™ and SonoHD2™) and advanced Doppler capabilities, so you can move fast without flying blind.

Edge II’s signature is its transducer-focused upgrades: DirectClear™ Technology (on select probes) increases penetration and contrast, while Armored Cable Technology (optional on select probes) adds an embedded metal jacket to protect cable connections from the daily abuse of rolling, stepping, and twisting, helping preserve image quality over the transducer’s life. Add a wide-angle, anti-reflection glass display and a sealed, easy-clean control surface, and you get a system that’s designed for real clinical environments.

Key Features:

DirectClear™ transducer technology (select probes) for improved penetration, contrast resolution, and sharpened detail.
Armored Cable Technology (optional on select probes) with embedded metal jacket to protect signal connections and durability.
Fast startup: less than 25 seconds from power-on to scanning.
12.1-inch LCD with chemically-etched glass and 85° viewing angles (up/down/left/right) for easier viewing with fewer adjustments.
Durable build: drop-tested at 3 ft.
Full imaging toolkit: 2D, Tissue Harmonic Imaging, M-Mode, Color Doppler/Power Doppler, PW/CW Doppler, and tissue Doppler options.
Sealed, infection-control-friendly interface: low-profile keys for cleaning, keyboard sealed to the edge to inhibit liquid ingress.
Onboard storage and export: 16GB internal storage, USB auto-export, encrypted patient data, and common export formats (MPEG-4 H.264, JPEG, BMP, HTML).

SonoSite Edge II Ultrasound System Specifications:

System Type	Portable point-of-care ultrasound system; supports stand and accessory ecosystem (mini-dock, holders, baskets, etc.).
Weight	9.21 lb with battery (4.18 kg).
Dimensions (L × W × H)	12.8 in × 12.1 in × 2.5 in (32.6 cm × 30.7 cm × 6.4 cm).
Display	12.1-inch diagonal LCD (NTSC or PAL) with chemically-etched glass; 85° viewing angles (up/down/left/right).
Architecture / Image Depth	All-digital broadband; dynamic range up to 165 dB; 256 shades of gray.
Imaging Modes	2D, Tissue Harmonic Imaging, M-Mode; Velocity Color Doppler, Color Power Doppler; PW, PW Tissue Doppler, CW; Doppler angle correction after freeze.
Image Processing	SonoADAPT™ Tissue Optimization; SonoHD2™ Imaging Technology; Dual/Duplex imaging; 2× pan/zoom; dynamic range & gain controls; ColorHD™ Technology.
User Interface	Softkeys for advanced features; programmable A/B keys; sealed low-profile keyboard; trackpad with select key; dedicated AutoGain and exam keys; Doppler and color control sets.
Transducers Supported	Broadband/multifrequency linear, curved, phased, micro-convex, and multiplane TEE; DirectClear on select probes; optional Armored Cable on select probes.
Exam Types / Applications	Abdominal, breast, cardiology, OB/GYN, lung, musculoskeletal, neonatal, nerve, ophthalmic/orbital, small parts, spine, superficial, TCD, arterial and venous.
Durability	Drop-tested at 3 ft (91.4 cm).
Onboard Storage / Review	16GB internal flash; supports up to 500 patients; cine review up to 255 frames; clip store up to 60 seconds (or up to 10 heart cycles in ECG beats mode); USB auto export; encrypted patient data.
Connectivity (Data Management)	PDAS (wireless/wired image & report management), Q-path system; DICOM (Print/Store, Modality Worklist, Storage Commit, etc.); export formats: MPEG-4 (H.264), JPEG, BMP, HTML.
Ports (System)	2× USB; 1× ECG input; integrated speakers. With mini-dock: S-Video (in/out), DVI out, composite video (NTSC/PAL), audio out, Ethernet/wireless transfer, USB, RS-232.
Power	Battery or AC operation; rechargeable lithium-ion battery; universal AC adapter 100–240 VAC, 50/60 Hz input, 15 VDC output; < 25 sec power-on to scanning.
