Philips Ultrasound Transducer Probes
Absolute Medical carries an extensive selection of internal and external ultrasound probes and transducers from Philips, one of the foremost manufacturers of ultrasound equipment. These versatile diagnostic tools excel at determining the size, shape and consistency of soft tissues and organs without the risks associated with X-rays and CT scans. Imaging options include doppler, bone sonography, echocardiography, and can be rendered in flat 2D, static 3D, or moving 4D images.

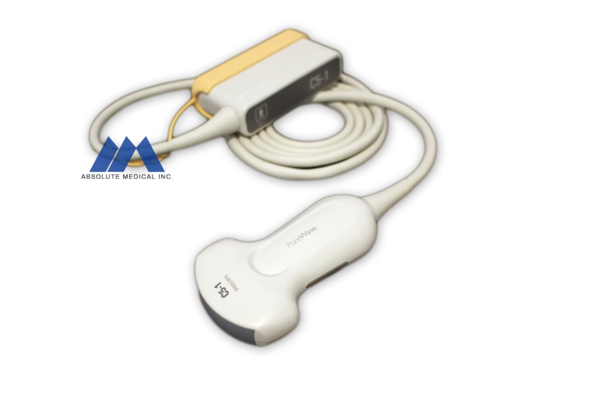

Philips C5-1 Ultrasound Transducer Probe for IE33
Broadband curved array transducer with PureWave crystal technology
- Technology: Broadband
- Number of elements: 160
- Frequency range: 5 - 1 MHz
- Array Type: Curved
- Aperture: 55.5 mm
- Field of view: 111°
- Modes: 2D, steerable pulsed, High-PRF, and color Doppler, color power angio (CPA), directional CPA, SonoCT, variable XRES and multivariate harmonic imaging
- Applications: General purpose abdominal (adult and pediatric, including vascular), bowel, obstetrical, gynecological, prostate and interventional applications
- Biopsy capable: Yes
- Image Fusion Navigation capable: Yes

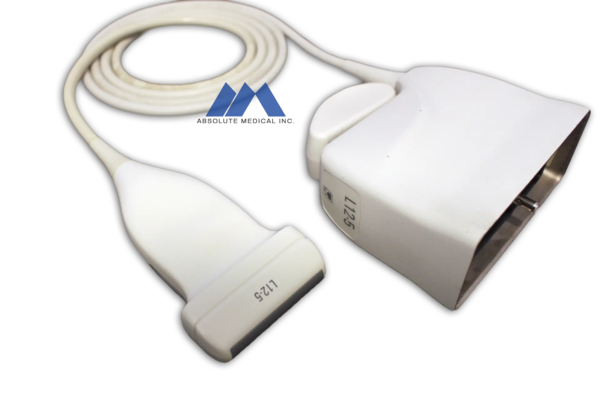

Philips L12-5 Ultrasound Transducer Probe for cx50
Linear array transducer
- Technology: [200 ch.]
- Number of elements: 256 [200 ch.]
- Frequency range: 12-5 MHz [200 ch.]
- Array Type: Linear [200 ch.]
- Aperture: 50mm- [200 ch.]
- Field of view: [200 ch.]
- Volume of field of view: [200 ch.]
- Modes: 2D, steerable pulsed wave and color Doppler, color power angio (CPA), SonoCT, variable XRES, and multivariate harmonic imaging [200 ch.]
- Applications: Breast, thyroid and superficial small parts; musculoskeletal tendon, abdomen bowel, and vascular applications [200 ch.]
- Biopsy capable: Yes [200 ch.]
- Image Fusion Navigation capable: Yes [200 ch.]
- Physical dimensions: Cable length: 78 in/198 cm [200 ch.]:

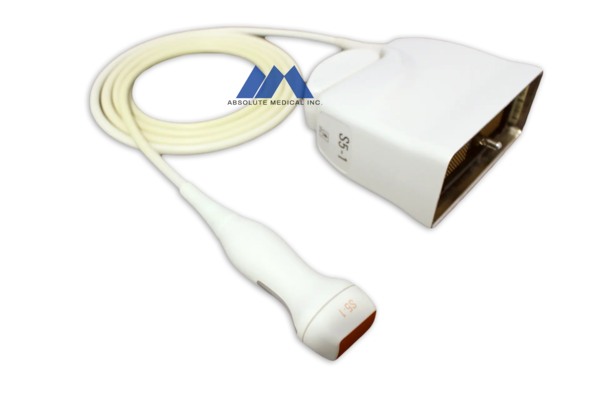

Philips S5-1 Ultrasound Transducer Probe for cx50
Broadband sector array transducer
- Technology: Broadband, PureWave
- Number of elements: 80
- Frequency range: 5 - 1 MHz
- Array Type: Sector
- Aperture: 20.3 mm
- Field of view: 90°
- Modes: 2D, CW, steerable pulsed wave, High-PRF, color Doppler,tissue Doppler, XRES, AutoSCAN, iSCAN, and harmonic imaging
- Applications: Adult echo, abdominal, pediatric echo, and TCD applications
- Biopsy capable: Yes
- Image Fusion Navigation capable: No

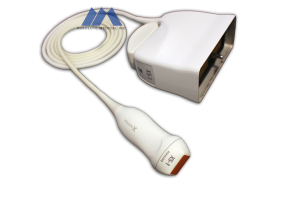

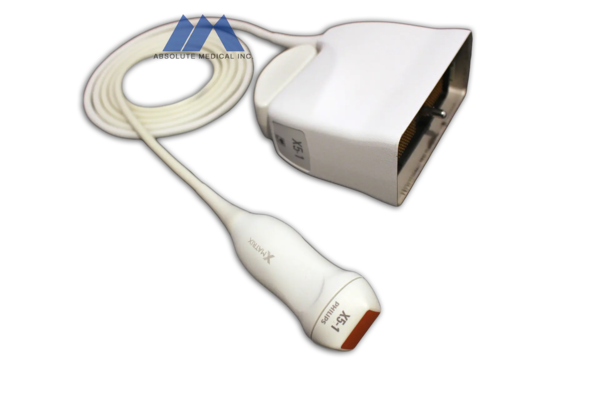

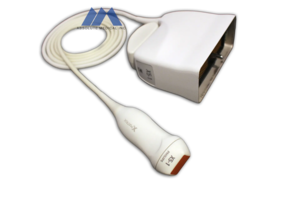

Philips X5-1 Ultrasound Transducer Probe for IE33
xMATRIX array transducer with PureWave crystal technology
- Technology: xMATRIX, PureWave
- Number of elements: 3040
- Frequency range: 5 - 1 MHz
- Array Type: Sector, Volume Sector
- Aperture: Proprietary
- Field of view: 90°
- Volume of field of view: 98° x 98°
- Modes: 2D, M-Mode, Color M-Mode, PW, CW, Color, TDI, TDI PWD, xPlane, Live 3D, Live 3D Color, Harmonic Imaging, Advanced XRES, 2D/Live 3D LVO, iRotate and xPLANE
- Applications: Adult/Pediatric Cardiac, Abdominal Vascular, TCD
- Biopsy capable: No
- Image Fusion Navigation capable: No
- Physical dimensions: 9.2 x 3.9 x 2.9 cm (3.6 x1.5 x 1.1 in) LWD

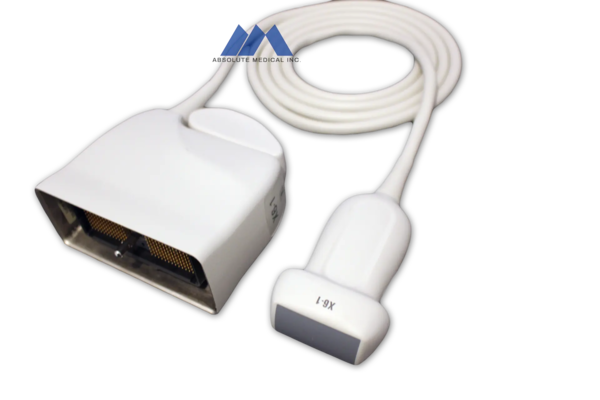

Philips X6-1 Ultrasound Transducer Probe for IE33
xMATRIX array transducer with PureWave crystal technology
- Technology: xMATRIX, PureWave
- Number of elements: 9212
- Frequency range: 6 - 1 MHz
- Array Type: Sector, Volume Sector
- Aperture: Proprietary
- Field of view: 100°
- Volume of field of view: 90° x 90°
- Modes: 2D, 3D, 4D, panoramic volume, live xPlane, MMode, steerable pulsed Doppler, color Doppler, color power angio (CPA), XRES, elevation compounding, multivariate harmonic imaging
- Applications: Abdominal, Obstetrics, Fetal, Gynecology, Vascular
- Biopsy capable: Yes
- Image Fusion Navigation capable: Yes
